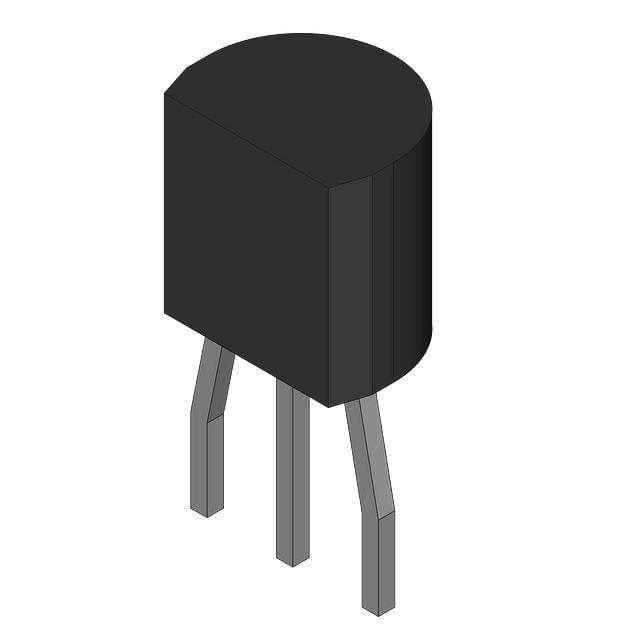

2SB892S-AE

SKU: 7682

Manufacturer: onsemi

Trans GP BJT PNP 50V 2A 1000mW 3-Pin Case MP Box

2740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	60
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	1.2@50mA@1A
Maximum Collector-Emitter Saturation Voltage (V)	0.7@50mA@1A
Maximum DC Collector Current (A)	2
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	140@100mA@2V
Maximum Power Dissipation (mW)	1000
Maximum Transition Frequency (MHz)	150(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Box
Original Package	Case MP
Pin Count	3
Terminal Form	Through Hole
Package Height	8.5
Package Length	6
Package Width	4.7
