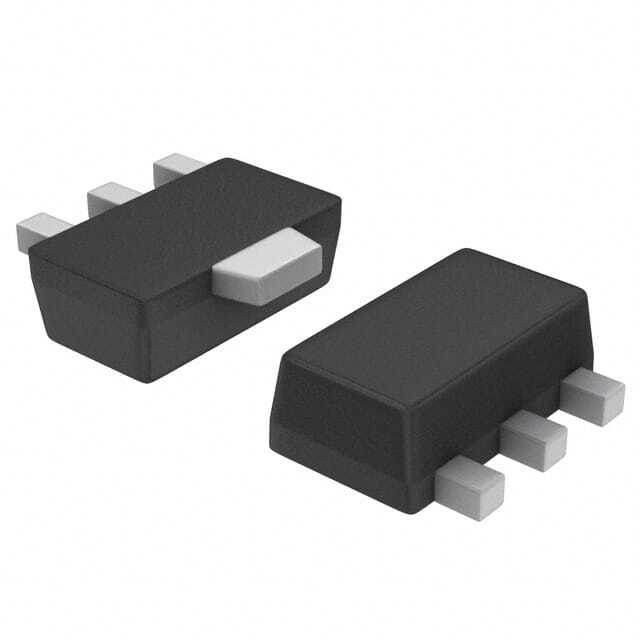

2SA2125-TD-H

SKU: 114631

Manufacturer: onsemi

Trans GP BJT PNP 50V 3A 1300mW 4-Pin(3+Tab) SOT-89 T/R

3380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	50
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	1.2@100mA
Maximum Collector-Emitter Saturation Voltage (V)	0.23@50mA@1A
Maximum DC Collector Current (A)	3
Maximum Collector Cut-Off Current (nA)	1000
Minimum DC Current Gain	200@100mA@2V
Maximum Power Dissipation (mW)	1300
Maximum Transition Frequency (MHz)	390(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	SOT
Original Package	SOT-89
Terminal Form	Surface Mount
Package Height	1.5
Package Length	4.5
Package Width	2.5
PCB changed	3
Tab	Tab
