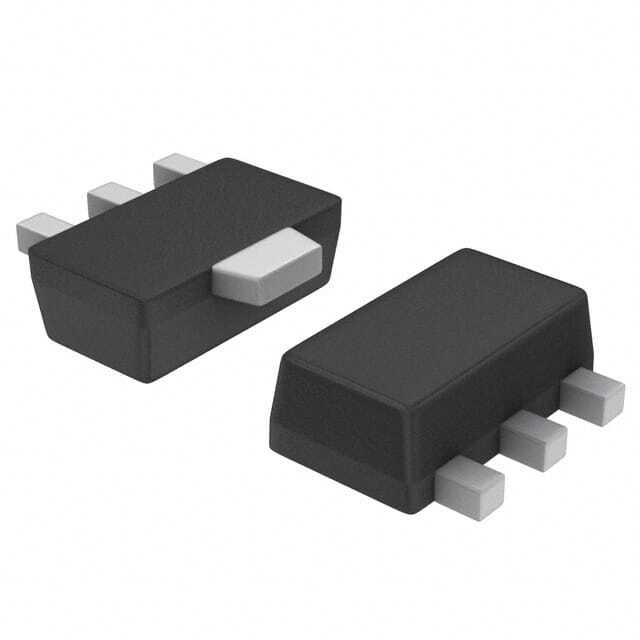

2SA2014-TD-E

SKU: 6801

Manufacturer: onsemi

Trans GP BJT PNP 15V 9A 1300mW

3430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.29.00.75
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Body Material	Si
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	15
Collector-Emitter Voltage-Max (V)	15
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1.2@60mA@3A
Maximum Collector-Emitter Saturation Voltage (V)	0.17@60mA@3A
Maximum DC Collector Current (A)	9
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	200@500mA@2V
Maximum Power Dissipation (mW)	1300
Maximum Transition Frequency (MHz)	220(Typ)
Operating Temperature-Min	-55
