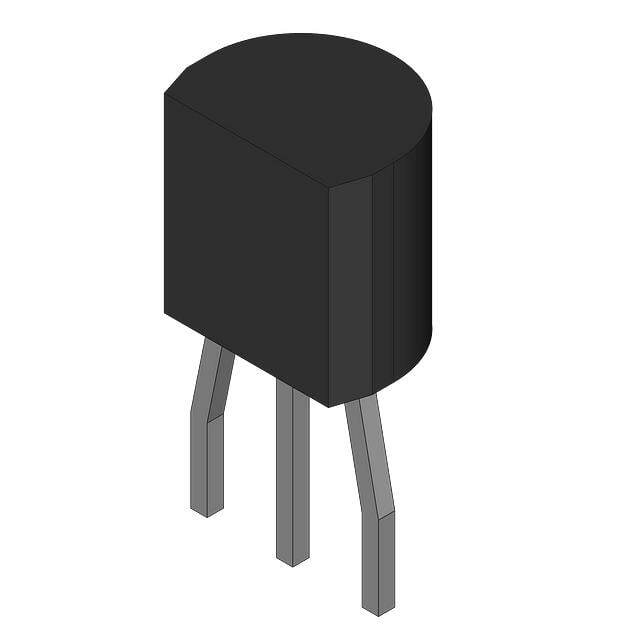

2SA1371D-AE

SKU: 5641

Manufacturer: onsemi

Trans GP BJT PNP 300V 0.1A 1000mW 3-Pin Case MP

4520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8541.29.00.75
Type	PNP
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	300
Collector-Emitter Voltage-Max (V)	300
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1@2mA@20mA
Maximum Collector-Emitter Saturation Voltage (V)	0.6@2mA@20mA
Maximum DC Collector Current (A)	0.1
Minimum DC Current Gain	60@10mA@10V
Maximum Power Dissipation (mW)	1000
Maximum Transition Frequency (MHz)	150(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	Case MP
Pin Count	3
Terminal Form	Through Hole
Package Height	8.5
Package Length	6
Package Width	4.7
