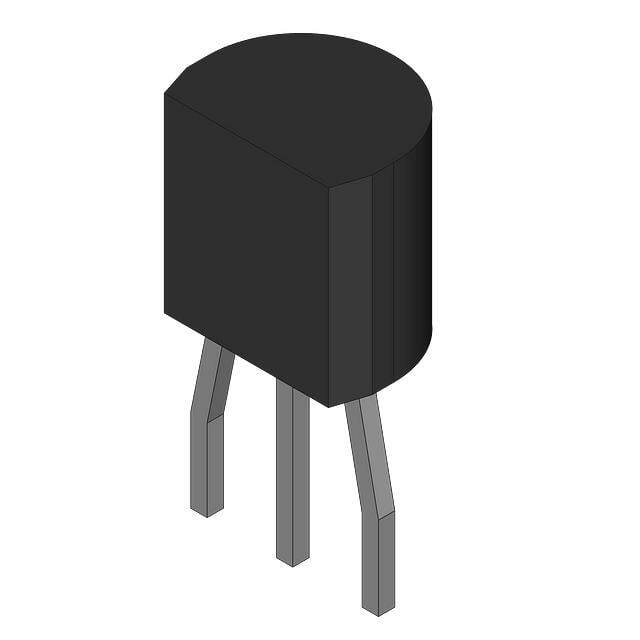

2N7000

SKU: 9580

Manufacturer: onsemi

Trans MOSFET N-CH 60V 0.2A 3-Pin TO-92 Bag

41680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Process Technology	DMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	3
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	0.2
Maximum Gate Source Leakage Current (nA)	10
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	5000@10V
Typical Input Capacitance @ Vds (pF)	20@25V
Typical Reverse Transfer Capacitance @ Vds (pF)	4@25V
Minimum Gate Threshold Voltage (V)	0.8
Typical Output Capacitance (pF)	11
Maximum Power Dissipation (mW)	400
Typical Turn-Off Delay Time (ns)	10(Max)
Typical Turn-On Delay Time (ns)	10(Max)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Bag
Maximum Positive Gate Source Voltage (V)	20
Maximum Pulsed Drain Current @ TC=25°C (A)	0.5
Typical Gate Plateau Voltage (V)	4.5
Typical Gate Threshold Voltage (V)	2.1
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	5.33(Max)
Package Length	5.2(Max)
Package Width	4.19(Max)
PCB changed	3
