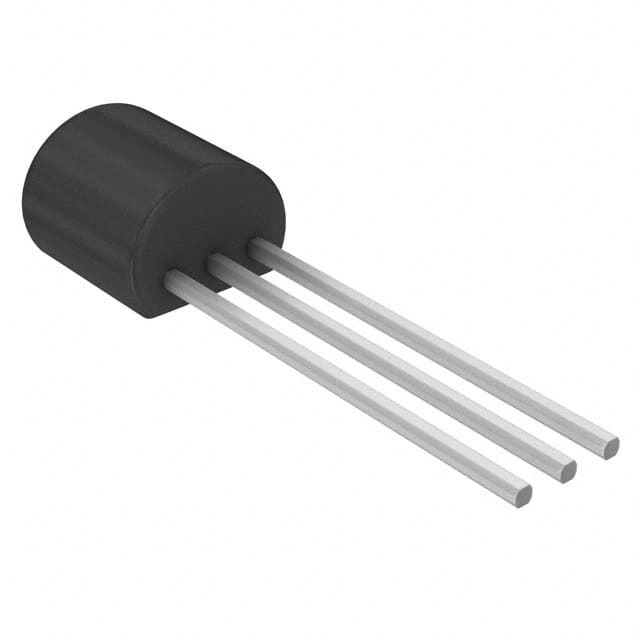

2N6515

SKU: 22696

Manufacturer: onsemi

Trans GP BJT NPN 250V 0.5A 625mW 3-Pin TO-92 Box

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.21.00.75
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	250
Collector-Emitter Voltage-Max (V)	250
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	0.75@1mA@10mA
Maximum Collector-Emitter Saturation Voltage (V)	0.3@1mA@10mA
Maximum DC Collector Current (A)	0.5
Minimum DC Current Gain	35@1mA@10V
Maximum Power Dissipation (mW)	625
Maximum Transition Frequency (MHz)	200
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Box
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	5.33(Max)
Package Length	5.2(Max)
Package Width	4.19(Max)
PCB changed	3
