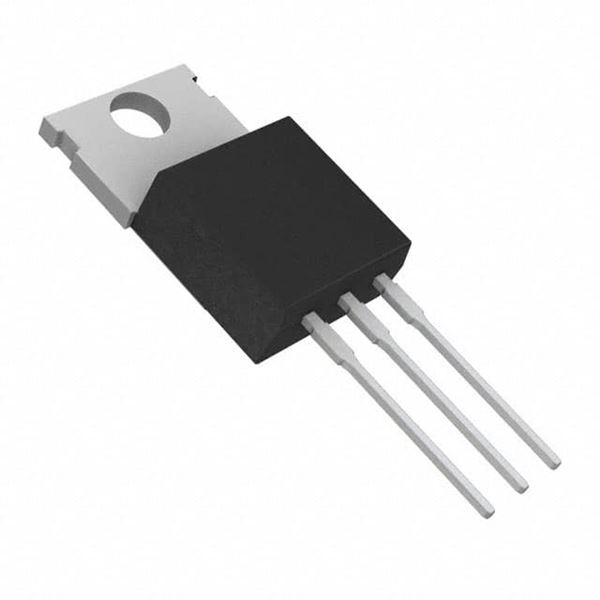

    2N6504

    SKU: 9577
    Manufacturer: onsemi
    SCR 50V 25A(RMS) 250A 3-Pin(3+Tab) TO-220AB Bulk
    Download sample
    Request Free Samples
    70 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Not Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.30.00.80
    Automotive No
    PPAP No
    Maximum Rate of Rise of Off-State Voltage (V/us) 50(Typ)
    Maximum Gate Trigger Voltage (V) 1.5
    Maximum Gate Trigger Current (mA) 30
    Surge Current Rating (A) 250
    Maximum Holding Current (mA) 40
    Repetitive Peak Reverse Voltage (V) 50
    Peak On-State Voltage (V) 1.8@50A
    Repetitive Peak Forward Blocking Voltage (V) 50
    Rated Average On-State Current (A) 16
    RMS On-State Current (A) 25
    Repetitive Peak Off-State Current (mA) 0.001
    Peak Gate Power Dissipation (W) 20
    Average Gate Power Dissipation (W) 0.5
    Phase Control No
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Original Package TO-220AB
    Pin Count 3
    Terminal Form Through Hole
    Package Height 9.28(Max)
    Package Length 10.28(Max)
    Package Width 4.82(Max)
    PCB changed 3
