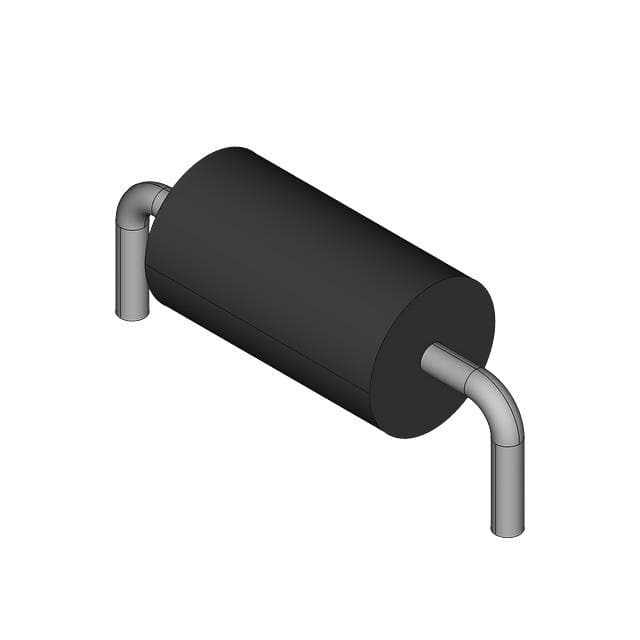

1V5KE200A

SKU: 65170

Manufacturer: onsemi

TVS Diode Single Uni-Dir 171V 1.5KW 2-Pin DO-201AD

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	190
Maximum Clamping Voltage (V)	274
Maximum Reverse Stand-Off Voltage (V)	171
Peak Forward Surge Current (A)	200
Maximum Peak Pulse Current (A)	5.5
Maximum Reverse Leakage Current (uA)	5
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	DO-201AD
Pin Count	2
Standard Package Method	DO-201-AD
Diameter	5.6(Max)
Terminal Form	Through Hole
Package Length	9.5(Max)
PCB changed	2
