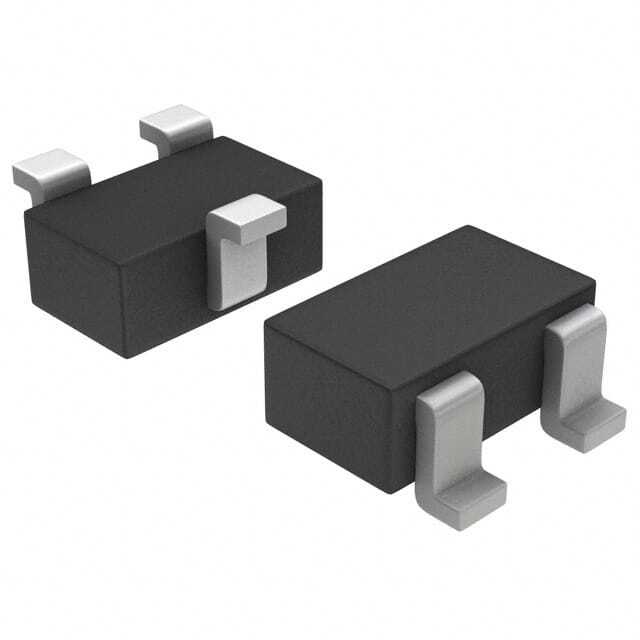

1SV315-TL-E

SKU: 43978

Manufacturer: onsemi

Diode PIN Attenuator 50V 50mA 3-Pin SC-70 T/R

2320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Attenuator
Configuration	Dual Series
Maximum Reverse Voltage (V)	50
Maximum Forward Current (mA)	50
Maximum Forward Voltage (V)	1
Maximum Series Resistance @ Maximum IF (Ohm)	9@10mA
Maximum Series Resistance @ Minimum IF (Ohm)	2400(Typ)@10uA
Maximum Diode Capacitance (pF)	0.23(Typ)@50V
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SC-70
Pin Count	3
Standard Package Method	SOT-323
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
PCB changed	3
