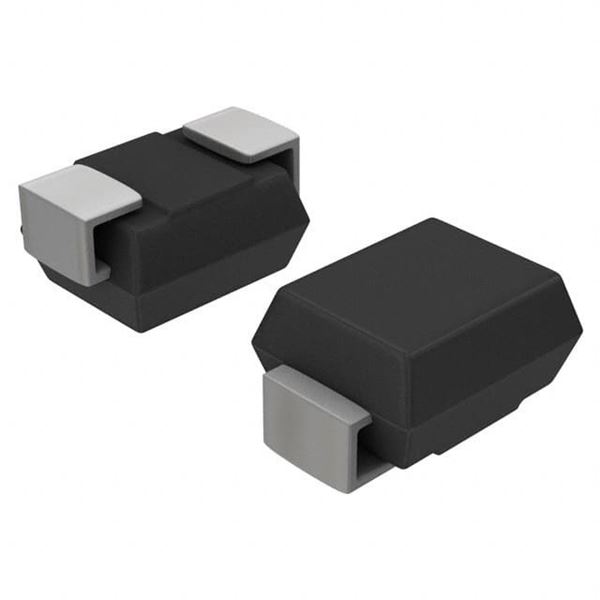

1SMB75CAT3

SKU: 36883

Manufacturer: onsemi

TVS Diode Single Bi-Dir 75V 600W 2-Pin SMB T/R

3220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	83.3
Maximum Clamping Voltage (V)	121
Maximum Reverse Stand-Off Voltage (V)	75
Maximum Peak Pulse Current (A)	4.9
Maximum Reverse Leakage Current (uA)	5
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	DO-214-AA
Original Package	SMB
Terminal Form	Surface Mount
Package Height	2.41(Max)
Package Length	4.57(Max)
Package Width	3.81(Max)
PCB changed	2
