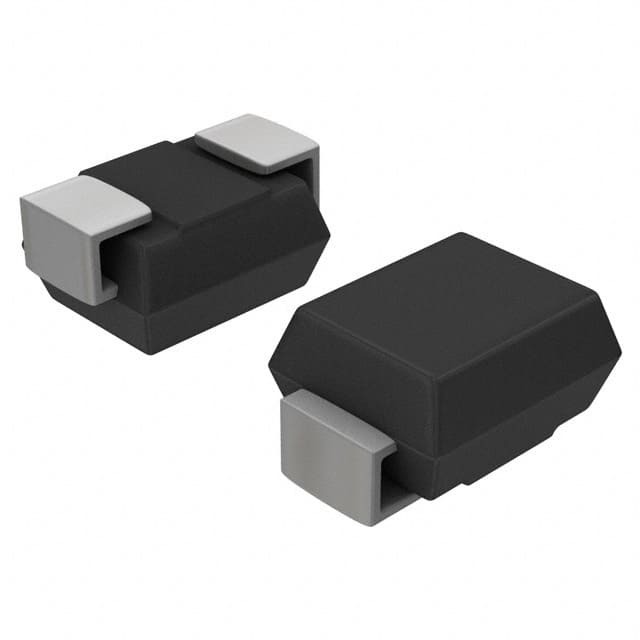

1SMB5933BT3

SKU: 29782

Manufacturer: onsemi

Zener Diode Single 22V 5% 17.5Ohm 3000mW Automotive 2-Pin SMB T/R

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	22
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	3000
Test Current (mA)	17
Maximum Reverse Leakage Current (uA)	1
Maximum Regulator Current (mA)	68
Maximum Zener Impedance (Ohm)	17.5
Maximum Power Dissipation @ 25C (mW)	550
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	DO-214-AA
Original Package	SMB
Terminal Form	Surface Mount
Package Height	2.2
Package Length	4.32
Package Width	3.56
PCB changed	2
