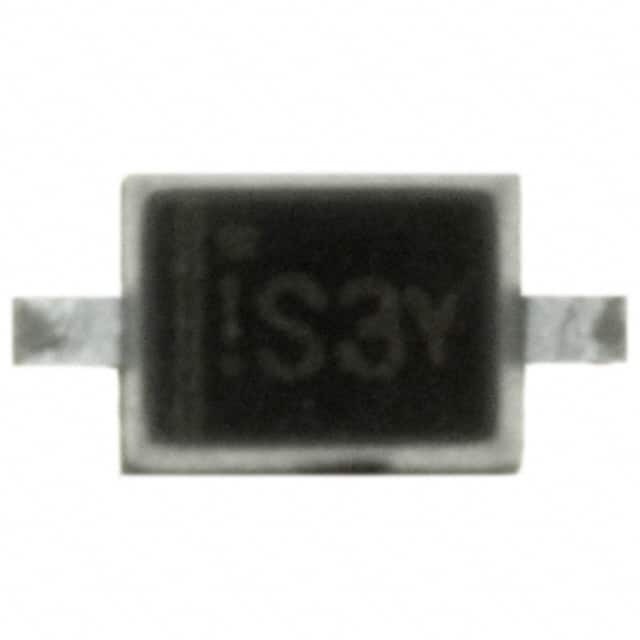

    1N914BWS

    SKU: 5435
    Manufacturer: onsemi
    Rectifier Diode Small Signal Switching 75V 0.15A 4ns 2-Pin SOD-323F T/R
    Request Free Samples
    15360 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    onsemi 1N914BWS is available at WIN SOURCE. Please review product page below for detailed information, including 1N914BWS price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 1N914BWS to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.10.00.80
    Automotive No
    PPAP No
    Type Small Signal Switching Diode
    Maximum DC Reverse Voltage (V) 100
    Configuration Single
    Peak Reverse Repetitive Voltage (V) 75
    Maximum Continuous Forward Current (A) 0.15
    Peak Non-Repetitive Surge Current (A) 4
    Peak Forward Voltage (V) 1@0.1A
    Peak Reverse Current (uA) 5
    Maximum Junction Ambient Thermal Resistance 500°C/W
    Maximum Diode Capacitance (pF) 4
    Maximum Power Dissipation (mW) 200
    Peak Reverse Recovery Time (ns) 4
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package SOD-323F
    Pin Count 2
    Standard Package Method SOD
    Terminal Form Surface Mount
    Package Height 0.7
    Package Length 1.7
    Package Width 1.25
    PCB changed 2
    onsemi 1N914BWS is available at WIN SOURCE. Please review product page below for detailed information, including 1N914BWS price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 1N914BWS to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
    • 1N914BWS Price
    • 1N91 Series
    • 1N914BWS Datasheet
    • 1N914BWS Application
    • 1N914BWS Pdf
    • 1N914BWS Pinout
    • 1N914BWS Image
    • 1N914BWS Picture
    • 1N914BWS In Stock
    • 1N914BWS Distributor
    • 1N914BWS onsemi
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.10.00.80
    Automotive No
    PPAP No
    Type Small Signal Switching Diode
    Maximum DC Reverse Voltage (V) 100
    Configuration Single
    Peak Reverse Repetitive Voltage (V) 75
    Maximum Continuous Forward Current (A) 0.15
    Peak Non-Repetitive Surge Current (A) 4
    Peak Forward Voltage (V) 1@0.1A
    Peak Reverse Current (uA) 5
    Maximum Junction Ambient Thermal Resistance 500°C/W
    Maximum Diode Capacitance (pF) 4
    Maximum Power Dissipation (mW) 200
    Peak Reverse Recovery Time (ns) 4
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package SOD-323F
    Pin Count 2
    Standard Package Method SOD
    Terminal Form Surface Mount
    Package Height 0.7
    Package Length 1.7
    Package Width 1.25
    PCB changed 2
