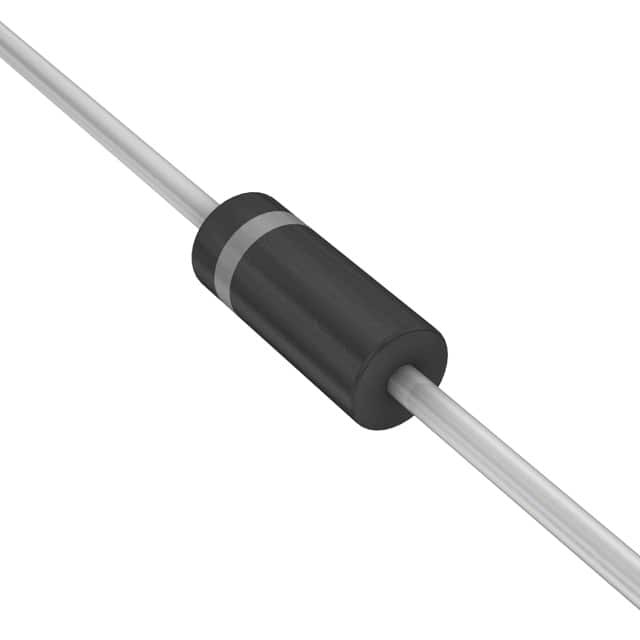

1N5347BRL

SKU: 65162

Manufacturer: onsemi

Zener Diode Single 10V 5% 2Ohm 5000mW 2-Pin Case 017AA-01 T/R

3090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	10
Zener Voltage Tolerance	5%
Maximum Voltage Regulation (mV)	220
Maximum Forward Voltage (V)	1.2
Maximum Power Dissipation (mW)	5000
Test Current (mA)	125
Maximum Reverse Leakage Current (uA)	5
Maximum Regulator Current (mA)	475
Maximum Zener Impedance (Ohm)	2
Maximum Power Dissipation @ 25C (mW)	5000
Operating Temperature-Min	-65
Operating Temperature-Max	200
Maximum Zener Voltage (V)	10.5
Minimum Zener Voltage (V)	9.5
Packing Method	Tape and Reel
Original Package	Case 017AA-01
Pin Count	2
Diameter	3.68(Max)
Terminal Form	Through Hole
Package Length	8.89(Max)
PCB changed	2
