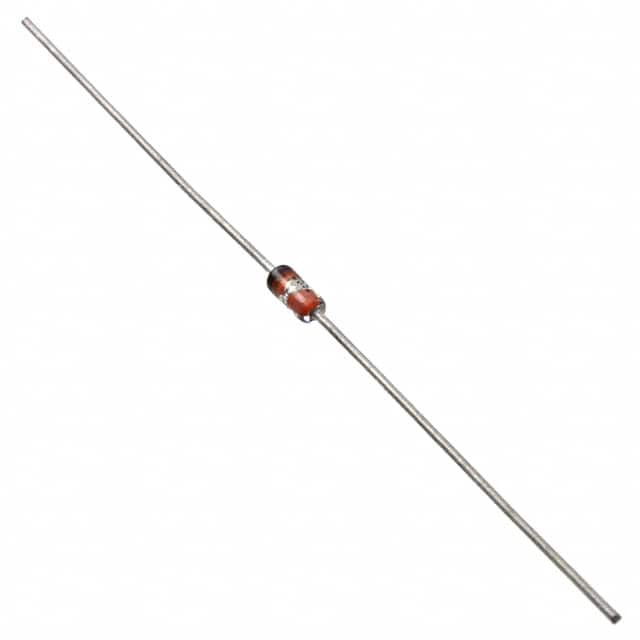

1N5223B

SKU: 5133

Manufacturer: onsemi

Zener Diode Single 2.7V 5% 30Ohm 500mW 2-Pin DO-35 Bag

Request Free Samples

2360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Overview
Specifications
Contact Us

onsemi 1N5223B is available at WIN SOURCE. Please review product page below for detailed information, including 1N5223B price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 1N5223B to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	2.7
Zener Voltage Tolerance	5%
Maximum Forward Voltage (V)	1.2
Maximum Power Dissipation (mW)	500
Test Current (mA)	20
Maximum Reverse Leakage Current (uA)	75
Maximum Zener Impedance (Ohm)	30
Maximum Power Dissipation @ 25C (mW)	500
Operating Temperature-Min	-65
Operating Temperature-Max	200
Typical Voltage Temperature Coefficient	-0.08%/°C(Max)
Maximum Zener Voltage (V)	2.835
Minimum Zener Voltage (V)	2.565
Packing Method	Bag
Original Package	DO-35
Pin Count	2
Standard Package Method	DO-204-AH
Diameter	1.91(Max)
Terminal Form	Through Hole
Package Length	4.56(Max)
PCB changed	2
