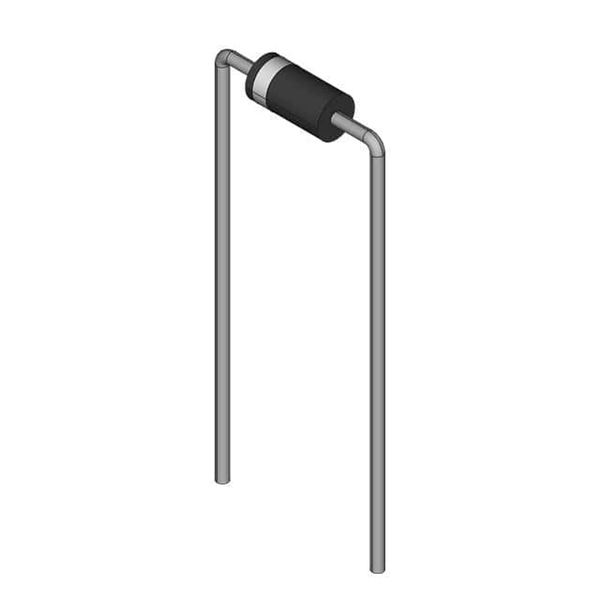

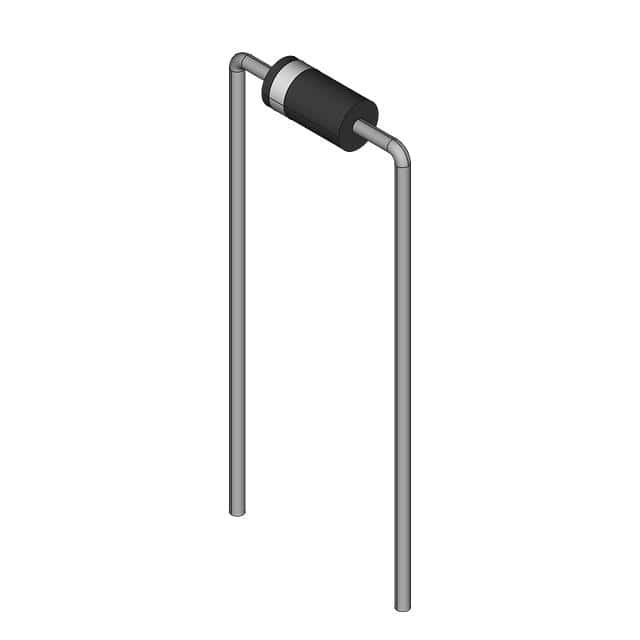

1N4935GP

SKU: 8903

Manufacturer: onsemi

Rectifier Diode Switching 200V 1A 150ns 2-Pin DO-41 T/R

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	1@Ta=75C
Peak Non-Repetitive Surge Current (A)	30
Peak Forward Voltage (V)	1.2
Peak Reverse Current (uA)	5
Maximum Power Dissipation (mW)	2730
Peak Reverse Recovery Time (ns)	150
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tape and Reel
Original Package	DO-41
Pin Count	2
Standard Package Method	DO-204-AL
Diameter	2.72(Max)
Terminal Form	Through Hole
Package Length	5.21(Max)
PCB changed	2
