1N4758A-T50A

SKU: 29772

Manufacturer: onsemi

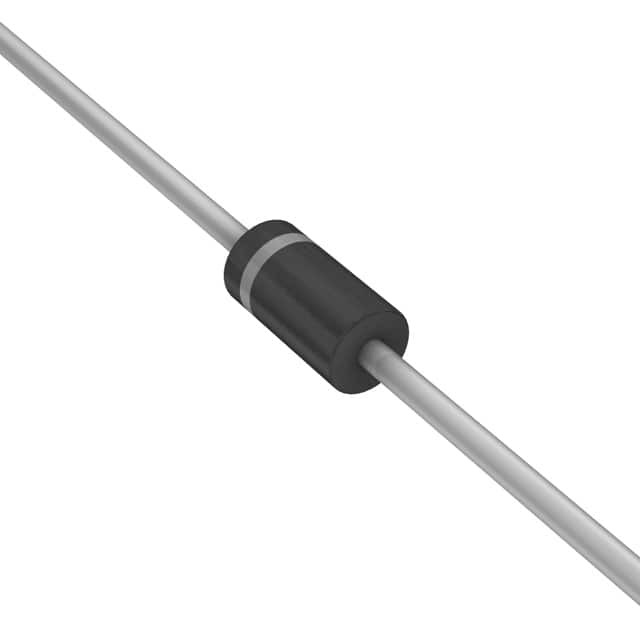

Zener Diode Single 56V 5% 110Ohm 1000mW 2-Pin DO-41 Ammo

1810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	56
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	1000
Test Current (mA)	4.5
Maximum Reverse Leakage Current (uA)	5
Maximum Zener Impedance (Ohm)	110
Operating Temperature-Min	-65
Operating Temperature-Max	200
Maximum Zener Voltage (V)	58.8
Minimum Zener Voltage (V)	53.2
Packing Method	Ammo
Original Package	DO-41
Pin Count	2
Standard Package Method	DO-204-AL
Diameter	2.72(Max)
Terminal Form	Through Hole
Package Length	5.2(Max)
PCB changed	2
