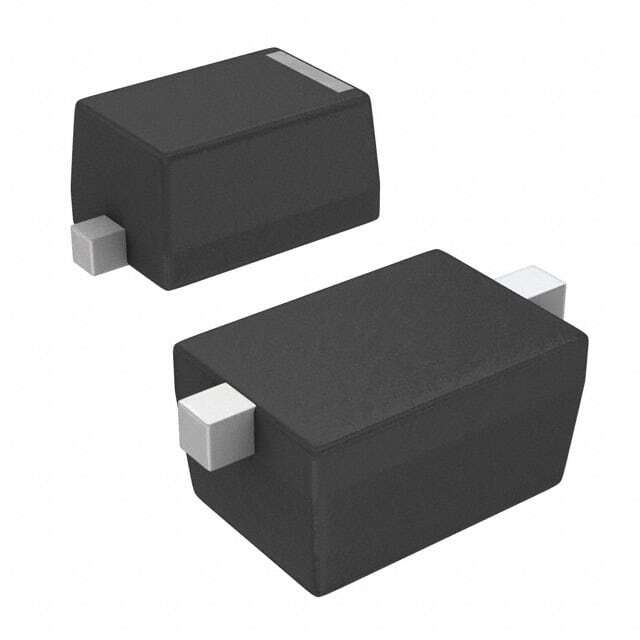

1N4148WT

SKU: 8411

Manufacturer: onsemi

Rectifier Diode Small Signal Switching 75V 4ns 2-Pin SOD-523 T/R

231620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Small Signal Switching Diode
Maximum DC Reverse Voltage (V)	100
Configuration	Single
Peak Reverse Repetitive Voltage (V)	75
Peak Forward Voltage (V)	1@0.01A
Peak Reverse Current (uA)	5
Maximum Junction Ambient Thermal Resistance	500°C/W
Maximum Diode Capacitance (pF)	4
Maximum Power Dissipation (mW)	200
Peak Reverse Recovery Time (ns)	4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	SOD
Original Package	SOD-523
Terminal Form	Surface Mount
Package Height	0.6
Package Length	1.2
Package Width	0.8
PCB changed	2
