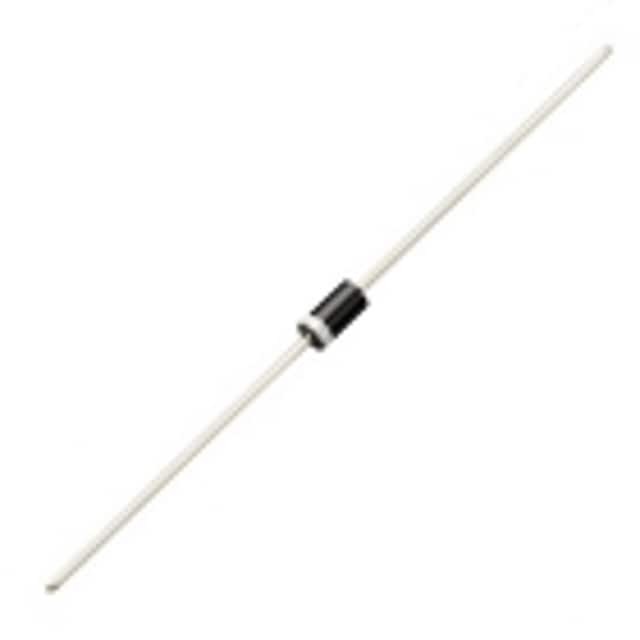

1N4001 onsemi

1N4001

SKU: 5940

Manufacturer: onsemi

Rectifier Diode Switching 50V 1A 2-Pin DO-41 Box

Request Free Samples

101550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	50
Configuration	Single
Peak Reverse Repetitive Voltage (V)	50
Maximum Continuous Forward Current (A)	1@Ta=75C
Peak Non-Repetitive Surge Current (A)	30
Peak Forward Voltage (V)	1.1
Peak Reverse Current (uA)	10
Maximum Junction Ambient Thermal Resistance	87°C/W(Typ)
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Box
Maximum RMS Reverse Voltage (V)	35
Original Package	DO-41
Pin Count	2
Standard Package Method	DO-204-AL
Diameter	2.7(Max)
Terminal Form	Through Hole
Package Length	5.2(Max)
PCB changed	2
