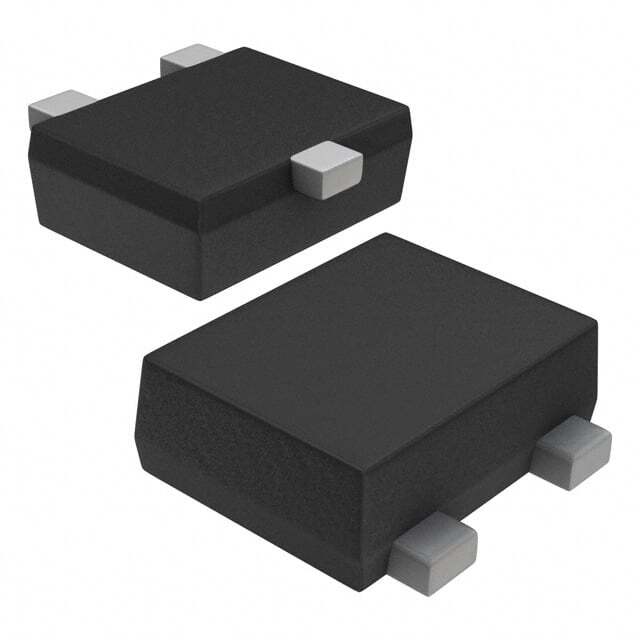

12A02MH-TL-E

SKU: 5082

Manufacturer: onsemi

Trans GP BJT PNP 12V 1A 600mW 3-Pin MCPH T/R

Download sample

Request Free Samples

5850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Overview
Specifications
Contact Us

onsemi 12A02MH-TL-E is available at WIN SOURCE. Please review product page below for detailed information, including 12A02MH-TL-E price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 12A02MH-TL-E to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.75
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	15
Collector-Emitter Voltage-Max (V)	12
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1.2@20mA@400mA
Maximum Collector-Emitter Saturation Voltage (V)	0.24@20mA@400mA
Maximum DC Collector Current (A)	1
Minimum DC Current Gain	300@10mA@2V
Maximum Power Dissipation (mW)	600
Maximum Transition Frequency (MHz)	450(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	MCPH
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.88(Max)
Package Length	2
Package Width	1.6
PCB changed	3
