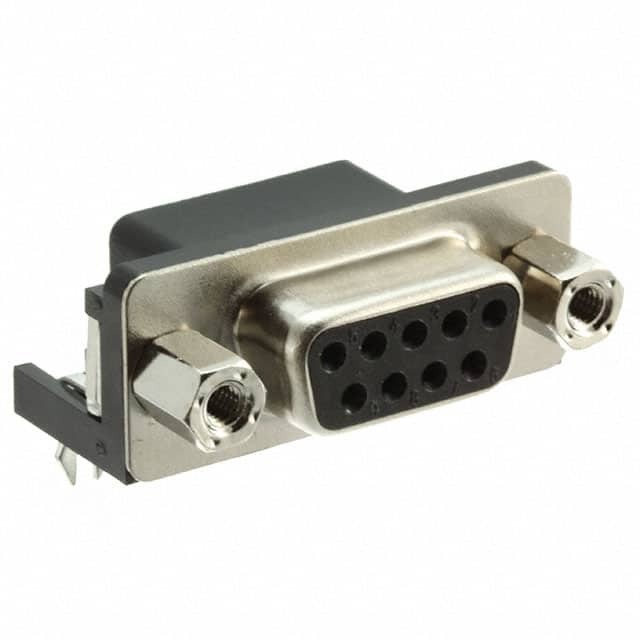

XM3B-0942-112L

SKU: 52702

Manufacturer: Omron

Conn D-Subminiature SKT 9 POS 2.77mm Solder RA Thru-Hole 9 Terminal 1 Port

2280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
Automotive	No
PPAP	No
Type	D-Subminiature
Gender	RCP
Number of Contacts	9
Number of Terminals	9
Number of Ports	1
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.38
Body Orientation	Right Angle
Contact Gender	SKT
Current Rating-Max(A)	3
Voltage Rating-Max	300VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-25
Operating Temperature-Max	105
Mating Cycle (Cycles)	100
Shell Body Material	Steel
Shell Plating	Nickel
Shell Size	E
Less Contact	No
Length (mm)	30.8
Depth (mm)	18.4
Height (mm)	12.55
Contact Plating	Gold Over Nickel
Contact Body Material	Phosphor Bronze
