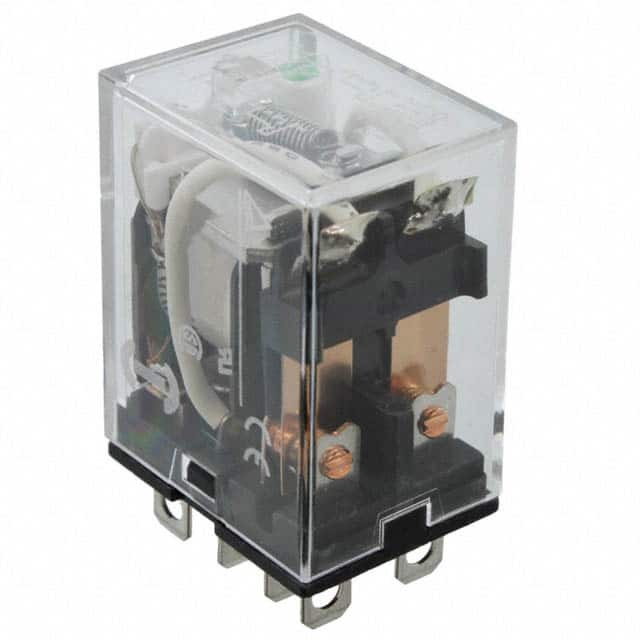

LY2N-D2-DC24 Omron

LY2N-D2-DC24

SKU: 151021

Manufacturer: Omron

Power Relay 24VDC 10A DPDT(28x21.5x42.4)mm Socket

Download sample

Request Free Samples

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.75
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	24
Coil Current (mA)	36.9
Coil Resistance (Ohm)	650
Maximum Pick-Up Voltage	19.2VDC
Minimum Dropout Voltage	2.4VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	125
Maximum Switching Current (A)	10
Maximum Switching Power	240W
Operate Time (ms)	25
LED Indicator	Yes
Push to Test Button	No
Coil Suppression Diode	Yes
Relay Construction	Non-Latching
Terminal Form	Socket
Terminal Form	Quick Connect
Number of Terminals	8
Operating Temperature-Min	-25
Operating Temperature-Max	55
Package Type	Dust Cover
Product Weight (g)	40
Length (mm)	28
Depth (mm)	21.5
