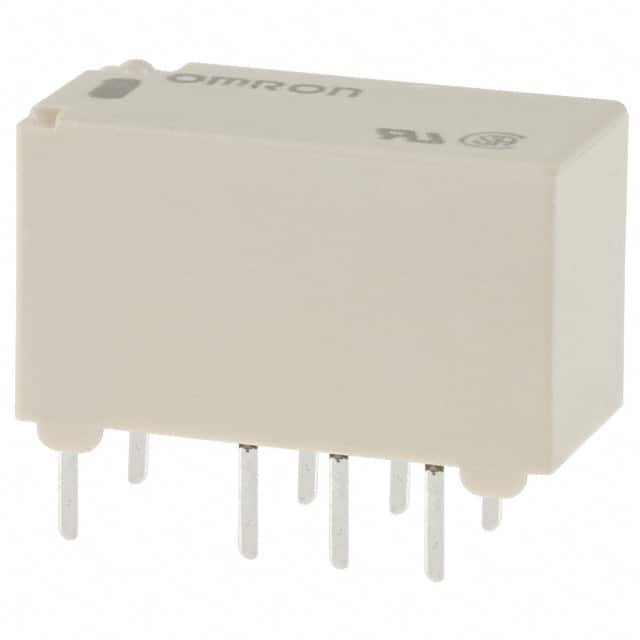

G6S2DC12

SKU: 16249

Manufacturer: Omron

Signal Relay 12VDC 2A DPDT(14.8x7.3x9.2)mm THT

3780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	12
Coil Current (mA)	11.7
Coil Resistance (Ohm)	1.028K
Maximum Contact Resistance (mOhm)	75
Insulation Resistance (MOhm)	1000
Maximum Pick-Up Voltage	9VDC
Minimum Dropout Voltage	1.2VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	220
Maximum Switching Current (A)	2
Operate Time (ms)	4
Release Time (ms)	4
Electrical Life (Operations)	100000
Mechanical Life (Operations)	100000000
Relay Construction	Non-Latching
Contact Body Material	Silver/Gold
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	8
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	DIP
Product Weight (g)	2
Length (mm)	14.8
Depth (mm)	7.3
