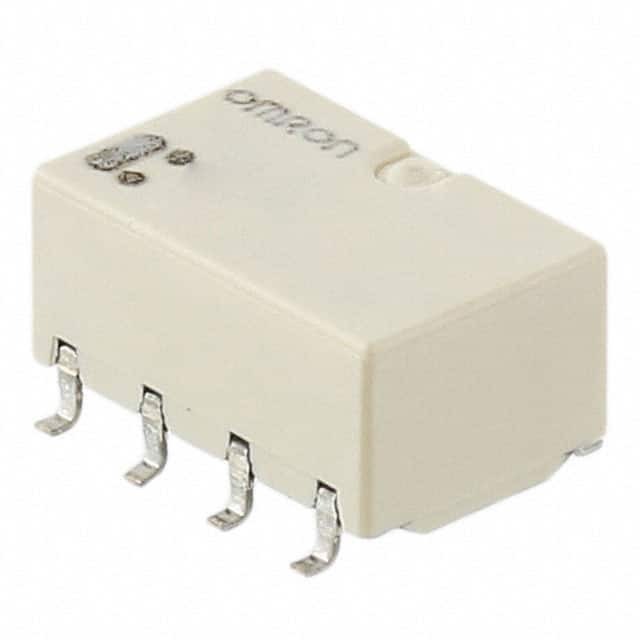

    G6KU2FY12DC

    SKU: 25939
    Manufacturer: Omron
    Signal Relay 12VDC 1A DPDT( (10mm 7.8mm 5.2mm)) SMD
    3590 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Contact Arrangement DPDT
    Contact Form 2 Form C
    DC Coil Voltage (V) 12
    Coil Current (mA) 9.1
    Coil Resistance (Ohm) 1.315K
    Maximum Contact Resistance (mOhm) 100
    Insulation Resistance (MOhm) 1000
    Maximum Pick-Up Voltage 9VDC
    Minimum Dropout Voltage 9VDC
    Maximum AC Switching Voltage (V) 125
    Maximum DC Switching Voltage (V) 60
    Maximum Switching Current (A) 1
    Operate Time (ms) 3
    Release Time (ms) 3
    Electrical Life (Operations) 100000
    Mechanical Life (Operations) 50000000
    Relay Construction Latching Single Coil
    Contact Body Material Silver/Gold Alloy
    Terminal Form Surface Mount
    Terminal Form Gull Wing
    Number of Terminals 8
    Seal Sealed
    Operating Temperature-Min -40
    Operating Temperature-Max 70
    Package Type SMD
    Product Weight (g) 0.7
    Length (mm) 10
    Depth (mm) 7.8
