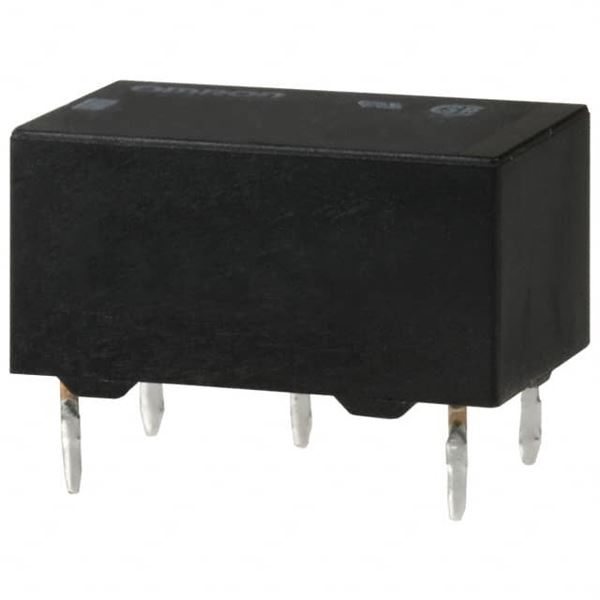

G6E-134P-ST-US-DC9

SKU: 157830

Manufacturer: Omron

Signal Relay 9VDC 3A SPDT(16x10x8)mm THT

3130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.50
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	9
Coil Current (mA)	22.2
Coil Resistance (Ohm)	405
Maximum Contact Resistance (mOhm)	50
Insulation Resistance (MOhm)	1000
Maximum Pick-Up Voltage	6.3VDC
Minimum Dropout Voltage	0.9VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	220
Maximum Switching Current (A)	3
Operate Time (ms)	5
Release Time (ms)	5
Electrical Life (Operations)	500000
Mechanical Life (Operations)	100000000
Relay Construction	Non-Latching
Contact Body Material	Silver/Gold Clad
Maximum Switching Power	60W
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	5
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	70
Product Weight (g)	2.7
Length (mm)	16
Depth (mm)	10
