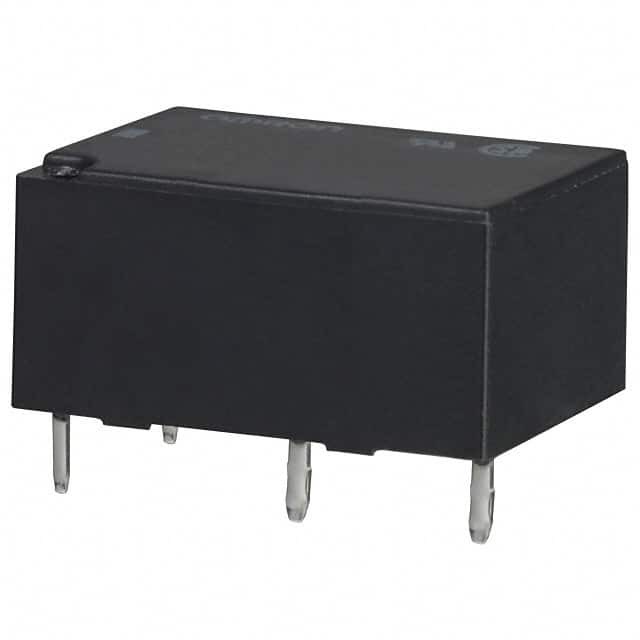

G6C-1114P-US-DC24 Omron

G6C-1114P-US-DC24

SKU: 146276

Manufacturer: Omron

Power Relay 24VDC 10A SPST-NO(20mm 15mm 10mm) THT

Download sample

Request Free Samples

1150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	24
Coil Current (mA)	8.3
Coil Resistance (Ohm)	2.88K
Maximum Pick-Up Voltage	16.8VDC
Minimum Dropout Voltage	2.4VDC
Maximum AC Switching Voltage (V)	380
Maximum DC Switching Voltage (V)	125
Maximum Switching Current (A)	10
Maximum Switching Power	300W
Operate Time (ms)	10
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	4
Operating Temperature-Min	-25
Operating Temperature-Max	70
Package Type	Dust Cover
Product Weight (g)	5.6
Length (mm)	20
Depth (mm)	15
