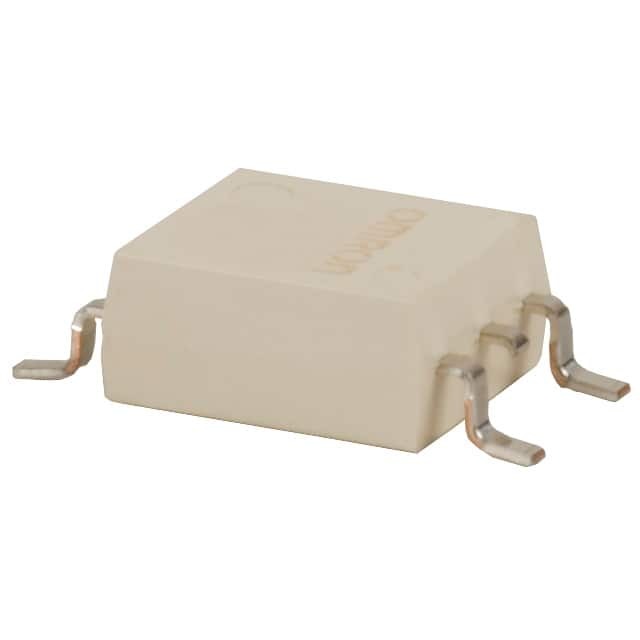

G3VM401G1

SKU: 89551

Manufacturer: Omron

Solid State Relay 25mA 1.4V DC-IN 0.1A 320V AC/DC-OUT 4-Pin SOP Stick

2790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.55
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	1.1
Maximum Input Voltage (V)	1.4
Maximum Input Current (mA)	25
Maximum Output Voltage (V)	320
Maximum Output Current (A)	0.1
Output Device	MOSFET
Output Type	AC
Minimum Load Current (mA)	100
I/O Isolation Voltage (V)	1500(RMS)
Maximum Off-State Leakage Current (uA)	1
Typical Input to Output Capacitance (pF)	0.8
Maximum Turn-On Time (ms)	10
Maximum Turn-Off Time (ms)	5
Circuit Arrangement	1 Form A
Operating Temperature-Min	-20
Operating Temperature-Max	65
Packing Method	Stick
Standard Package Method	SOP
Original Package	SOP
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.9(Max)
Package Length	3.9
Package Width	4.4
PCB changed	4
