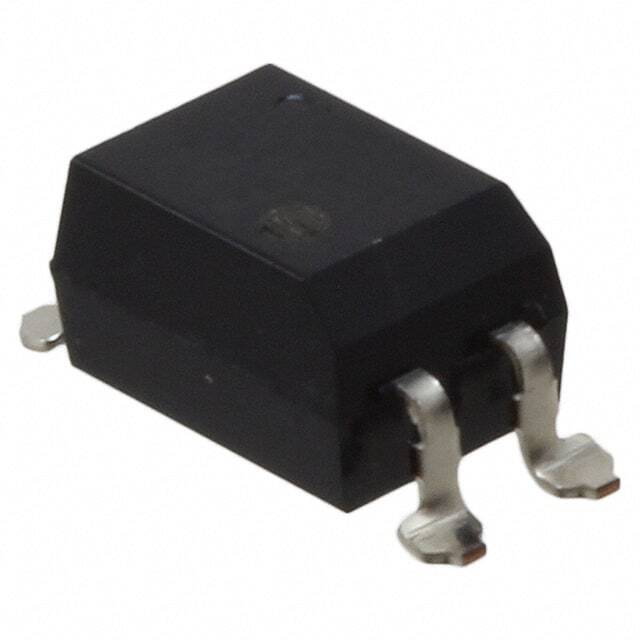

G3VM201DY

SKU: 132144

Manufacturer: Omron

Solid State Relay 20mA 1.4V DC-IN 0.25A 160V AC/DC-OUT 4-Pin DIP SMD Tube

610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.40.80.00
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	1.1
Maximum Input Voltage (V)	1.4
Maximum Input Current (mA)	20
Maximum Output Voltage (V)	160
Maximum Output Current (A)	0.25
Output Device	MOSFET
Output Type	AC
I/O Isolation Voltage (V)	5000(RMS)
Maximum Off-State Leakage Current (uA)	1
Typical Input to Output Capacitance (pF)	0.8
Maximum Turn-On Time (ms)	1
Maximum Turn-Off Time (ms)	1
Circuit Arrangement	1 Form A
Operating Temperature-Min	-20
Operating Temperature-Max	65
Packing Method	Tube
Standard Package Method	DIP
Original Package	DIP SMD
Pin Count	4
Terminal Form	Surface Mount
Package Height	3.65
Package Length	4.58
Package Width	6.4
PCB changed	4
