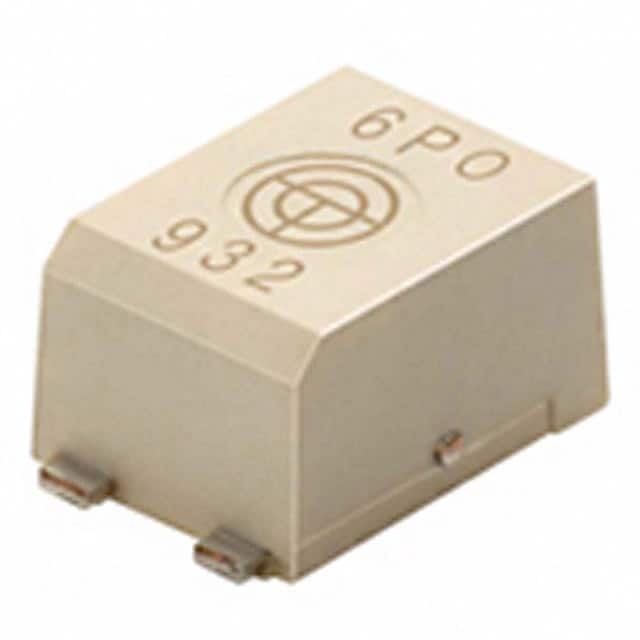

G3VM-21PR11

SKU: 51762

Manufacturer: Omron

Solid State Relay 20mA 1.3V DC-IN DC-OUT 4-Pin USOP

2590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	1
Maximum Input Voltage (V)	1.3
Maximum Input Current (mA)	20
Output Device	MOSFET
Output Type	DC
Minimum Load Current (mA)	700(Max)
Typical Input to Output Capacitance (pF)	0.4
Maximum Turn-On Time (ms)	2
Maximum Turn-Off Time (ms)	1
Circuit Arrangement	1 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	85
Standard Package Method	SOP
Original Package	USOP
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.65
Package Length	2.2
Package Width	2.85
