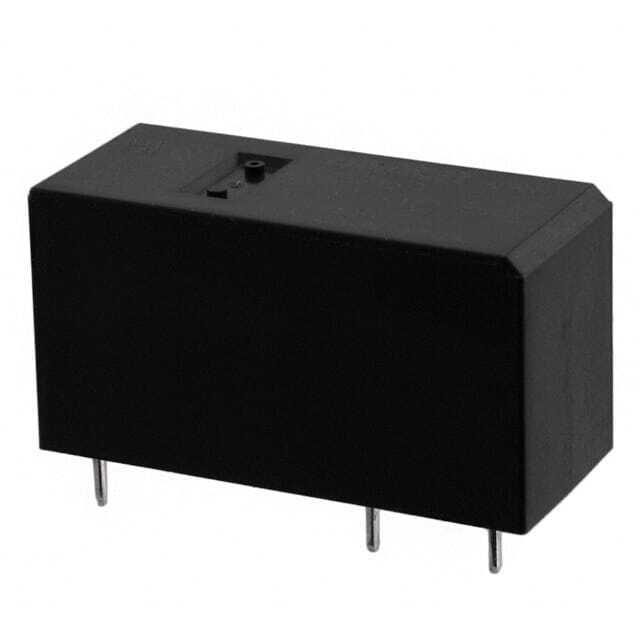

    G2RL1EDC18

    SKU: 108088
    Manufacturer: Omron
    Power Relay 18VDC 16A SPDT(29x12.7x15.7)mm THT
    Download sample
    Request Free Samples
    1210 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8536.41.00.20
    Automotive No
    PPAP No
    Contact Arrangement SPDT
    Contact Form 1 Form C
    DC Coil Voltage (V) 18
    Maximum Pick-Up Voltage 12.6VDC
    Minimum Dropout Voltage 1.8VDC
    Maximum AC Switching Voltage (V) 440
    Maximum DC Switching Voltage (V) 300
    Maximum Switching Current (A) 16
    Operate Time (ms) 15
    LED Indicator No
    Push to Test Button No
    Coil Suppression Diode No
    Relay Construction Non-Latching
    Terminal Form Through Hole
    Terminal Form PC Pin
    Number of Terminals 8
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Package Type DIP
    Product Weight (g) 12
    Length (mm) 29
    Depth (mm) 12.7
    • G2RL1EDC18 Price
    • G2RL Series
    • G2RL1EDC18 Datasheet
    • G2RL1EDC18 Application
    • G2RL1EDC18 Pdf
    • G2RL1EDC18 Pinout
    • G2RL1EDC18 Image
    • G2RL1EDC18 Picture
    • G2RL1EDC18 In Stock
    • G2RL1EDC18 Distributor
    • G2RL1EDC18 Omron
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8536.41.00.20
    Automotive No
    PPAP No
    Contact Arrangement SPDT
    Contact Form 1 Form C
    DC Coil Voltage (V) 18
    Maximum Pick-Up Voltage 12.6VDC
    Minimum Dropout Voltage 1.8VDC
    Maximum AC Switching Voltage (V) 440
    Maximum DC Switching Voltage (V) 300
    Maximum Switching Current (A) 16
    Operate Time (ms) 15
    LED Indicator No
    Push to Test Button No
    Coil Suppression Diode No
    Relay Construction Non-Latching
    Terminal Form Through Hole
    Terminal Form PC Pin
    Number of Terminals 8
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Package Type DIP
    Product Weight (g) 12
    Length (mm) 29
    Depth (mm) 12.7
