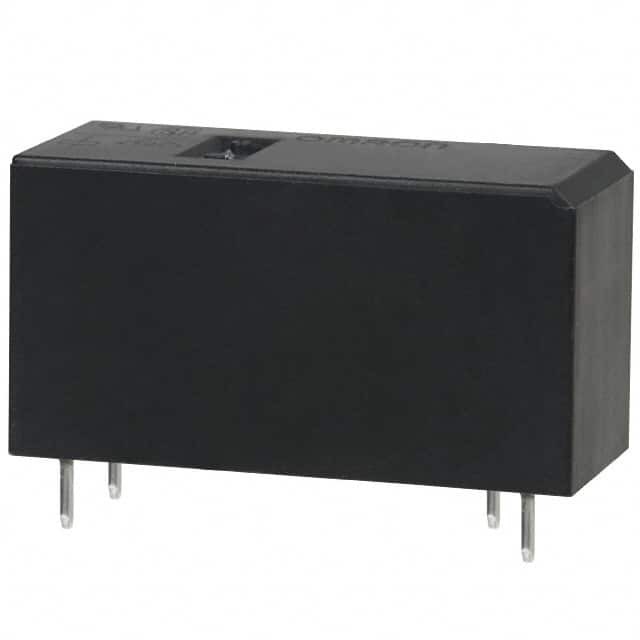

    G2RL1AEDC5

    SKU: 93925
    Manufacturer: Omron
    Power Relay 5VDC 16A SPST-NO(29x12.7x15.7)mm THT
    Download sample
    Request Free Samples
    1210 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8536.49.00.75
    Automotive No
    PPAP No
    Contact Arrangement SPST-NO
    Contact Form 1 Form A
    DC Coil Voltage (V) 5
    Coil Current (mA) 80
    Coil Resistance (Ohm) 62.5
    Insulation Resistance (MOhm) 1000
    Maximum Contact Resistance (mOhm) 100
    Maximum Pick-Up Voltage 3.5VDC
    Minimum Dropout Voltage 0.5VDC
    Maximum AC Switching Voltage (V) 440
    Maximum DC Switching Voltage (V) 300
    Maximum Switching Current (A) 16
    Operate Time (ms) 15
    Release Time (ms) 5
    Electrical Life (Operations) 30000
    Mechanical Life (Operations) 20000000
    LED Indicator No
    Push to Test Button No
    Coil Suppression Diode No
    Relay Construction Non-Latching
    Terminal Form Through Hole
    Terminal Form PC Pin
    Number of Terminals 6
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Package Type DIP
    Product Weight (g) 12
    Length (mm) 29
    Depth (mm) 12.7
