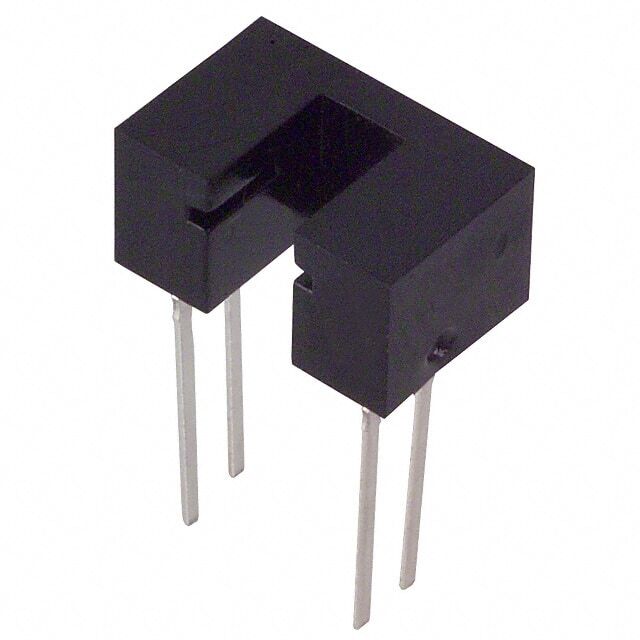

EESX1046

SKU: 72749

Manufacturer: Omron

Photointerrupter Transmissive Phototransistor 4-Pin

2030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.70.40
Automotive	No
PPAP	No
Type	Transmissive
Number of Channels per Chip	1
Slit Width (mm)	0.5
Peak Wavelength (nm)	920
Maximum Rise Time (ns)	4000(Typ)
Maximum Fall Time (ns)	4000(Typ)
Output Device	Phototransistor
Maximum Forward Current (mA)	50
Maximum Collector Current (mA)	20
Collector-Emitter Voltage-Max (V)	30
Maximum Reverse Voltage (V)	4
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-25
Operating Temperature-Max	85
Pin Count	4
Terminal Form	Through Hole
Package Height	5
Package Length	10
Package Width	6.5
