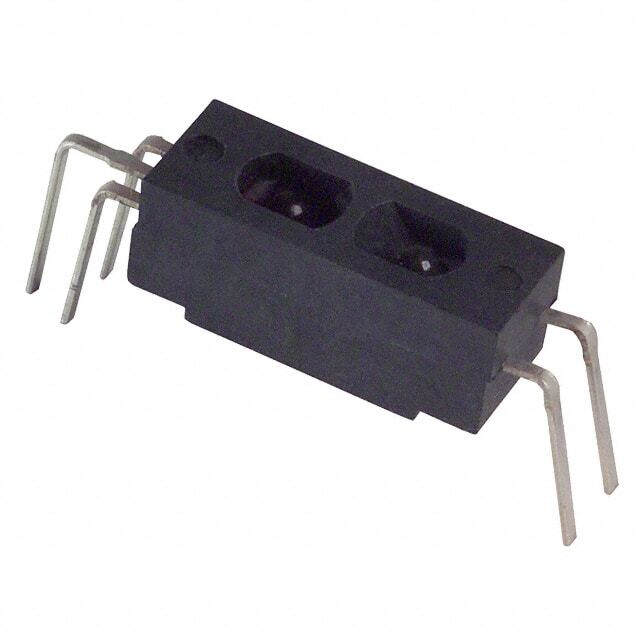

EE-SY410

SKU: 136492

Manufacturer: Omron

Photointerrupter Reflective Photologic, Open Collector 5-Pin

2940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Type	Reflective
Number of Channels per Chip	1
Peak Wavelength (nm)	920
Output Device	Photologic, Open Collector
Maximum Forward Current (mA)	50
Maximum Collector Current (mA)	16
Collector-Emitter Voltage-Max (V)	28
Maximum Reverse Voltage (V)	4
Maximum Power Dissipation (mW)	250
Operating Temperature-Min	-40
Operating Temperature-Max	75
Pin Count	5
Terminal Form	Through Hole
Package Height	4.8
Package Length	4.6
Package Width	12
