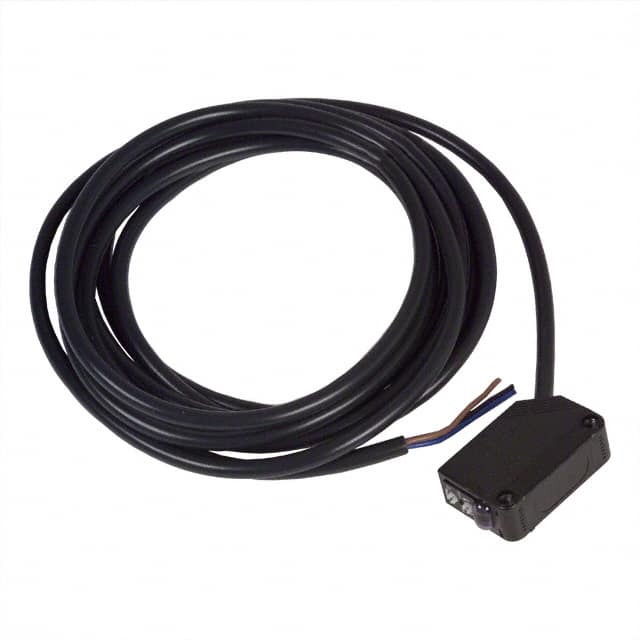

E3Z-D62

SKU: 58734

Manufacturer: Omron

Photoelectric Sensor Diffuse-Reflective Light ON/Dark ON NPN 1m 4-Pin

2610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	4547648286923
Part Status	Unconfirmed
HTS	8536.50.90.65
Automotive	No
PPAP	No
Type	Diffuse-Reflective
Switching Mode	Light ON/Dark ON
Light Source	Infrared
Maximum Sensing Distance (m)	1
Shock Rating (g)	50
Maximum Ambient Illumination (lux)	10000
Peak Emission Wavelength (nm)	860
Maximum Response Time (ms)	1
Output Type	NPN
Operating Supply Voltage-Min	12VDC
Operating Supply Voltage-Max	24VDC
Operating Temperature-Min	-25
Operating Temperature-Max	55
Terminal Type	Pre-Wired
Housing Body Material	Polybutylene Terephthalate
IP Rating	IP67
Pin Count	4
Terminal Form	Screw
Package Height	20
Package Length	33.1
Package Width	10.8
