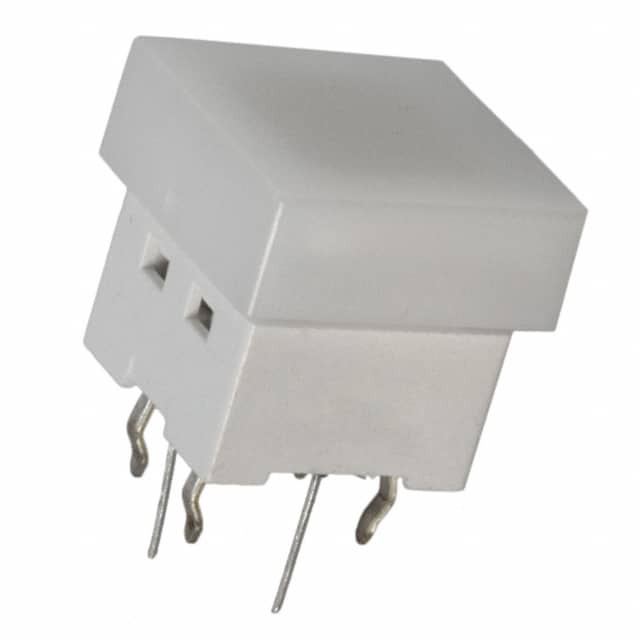

B3W-9010-RG2N

SKU: 74598

Manufacturer: Omron

Switch Tactile N.O. SPST Square Button PC Pins 0.05A 24VDC 1.57N Thru-Hole Box

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Pole Throw Configuration	SPST
Actuator Style	Square Button
Switching Function	Momentary
Switch Configuration	N.O.
Current Rating-Max(A)	0.05@24VDC
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	100
Electrical Life (Cycles)	1000000
Operating Force (N)	1.57
Actuator Color	Milky White
Actuator Length (mm)	5.2
Number of Rows	2
Row Spacing (mm)	6.5
Terminal Form	Through Hole
Terminal Form	PC Pins
Number of Terminals	4
Terminal Length (mm)	5.5
Terminal Pitch (mm)	4.5
IP Rating	IP64
Body Orientation	Straight
Operating Temperature-Min	-25
Operating Temperature-Max	70
Packing Method	Box
Body Length (mm)	10
Body Depth (mm)	10
Body Height (mm)	5.8
Length (mm)	12
Depth (mm)	12
