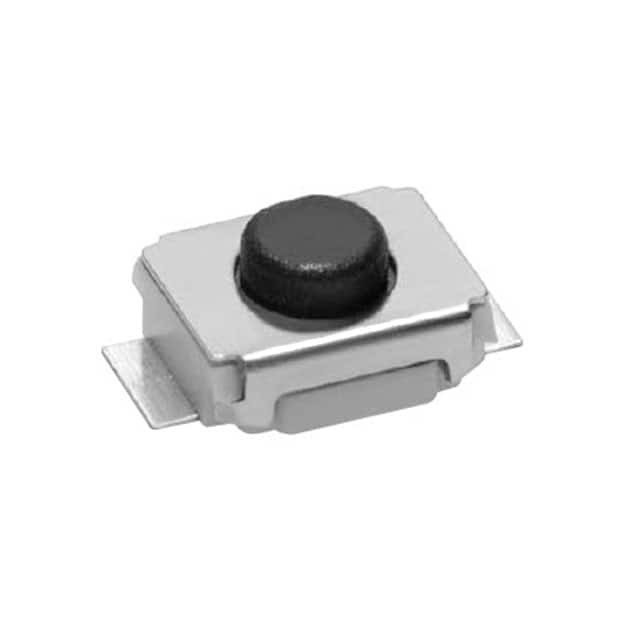

B3U-1100PM

SKU: 88660

Manufacturer: Omron

Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 1.5N SMD T/R

1190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Type	Ultra-Small
Pole Throw Configuration	SPST
Actuator Style	Round Button
Switch Configuration	N.O.
Current Rating-Max(A)	0.05@12VDC
Dielectric Strength	250VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	100
Electrical Life (Cycles)	200000
Operating Force (N)	1.5
Actuator Length (mm)	0.4
Number of Rows	1
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	2
Terminal Length (mm)	0.5
Terminal Pitch (mm)	3.4
IP Rating	IP40
Body Orientation	Straight
Operating Temperature-Min	-25
Operating Temperature-Max	70
Packing Method	Tape and Reel
Body Length (mm)	3
Body Depth (mm)	2.5
Body Height (mm)	1.2
Product Weight (g)	0.022
Length (mm)	4
Depth (mm)	3.15
