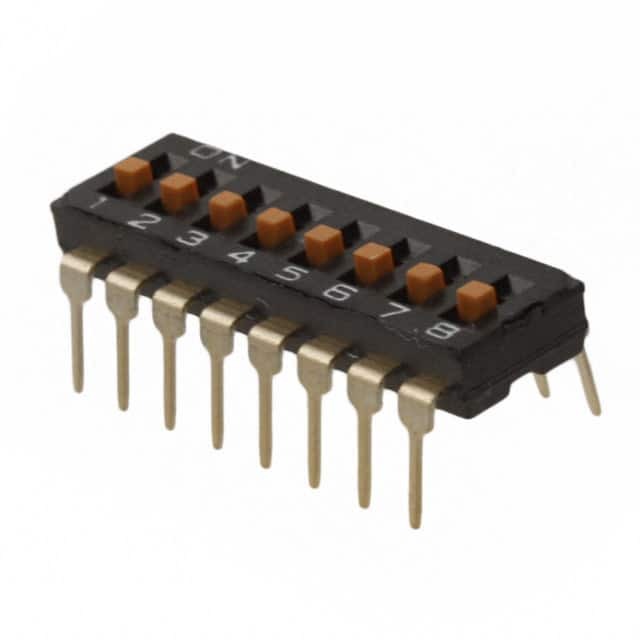

A6T-8104

SKU: 73990

Manufacturer: Omron

Switch DIP OFF ON SPST 8 Raised Slide 0.025A 24VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube

2470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Type	Slide DIP Switch
Actuator Style	Raised Slide
Pole Throw Configuration	SPST
Switch Configuration	OFF ON
Number of Positions	8
Current Rating-Max(A)	0.025@24VDC
Maximum DC Voltage Rating (V)	24
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	200
Electrical Life (Cycles)	1000
Mechanical Life (Cycles)	1000
Actuator Length (mm)	0.7
Seal	No
Terminal Form	Through Hole
Terminal Form	PC Pins
Terminal Pitch (mm)	2.54
Number of Terminals	16
Total Pitch (mm)	17.78
Row Space (mm)	7.62
Body Orientation	Straight
Operating Temperature-Min	-20
Operating Temperature-Max	70
Packing Method	Tube
Body Length (mm)	21.26
Body Depth (mm)	6.2
Product Weight (g)	0.79
Length (mm)	21.26
Depth (mm)	7.62
