    PrevA6S-1104-H
    NextA6S-2102-H

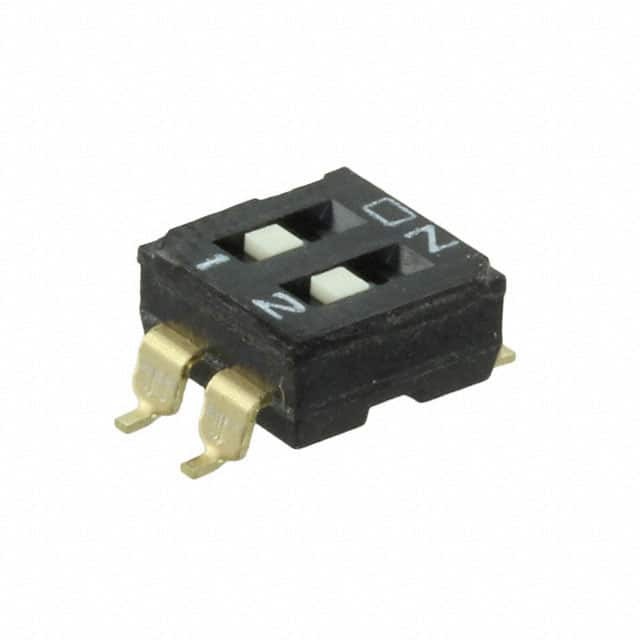

    A6S2102

    SKU: 143144
    Manufacturer: Omron
    Switch DIP OFF ON SPST 2 Flush Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD Stick
    Download sample
    Request Free Samples
    1520 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    Automotive No
    PPAP No
    Type DIP Switch
    Actuator Style Flush Slide
    Pole Throw Configuration SPST
    Switch Configuration OFF ON
    Number of Positions 2
    Current Rating-Max(A) 0.025@24VDC
    Maximum DC Voltage Rating (V) 24
    Dielectric Strength 500VAC
    Minimum Insulation Resistance (MOhm) 100
    Maximum Contact Resistance (mOhm) 200
    Electrical Life (Cycles) 1000
    Mechanical Life (Cycles) 1000
    Actuator Length (mm) 0
    Seal Tape
    Seal Location Top
    Seal Description Tape
    Terminal Form Surface Mount
    Terminal Form Gull Wing
    Terminal Pitch (mm) 2.54
    Number of Terminals 4
    Total Pitch (mm) 2.54
    Row Space (mm) 8.9
    Body Orientation Straight
    Operating Temperature-Min -20
    Operating Temperature-Max 70
    Packing Method Stick
    Body Length (mm) 6.02
    Body Depth (mm) 6.2
    Body Height (mm) 3
    Product Weight (g) 0.25
    Length (mm) 6.02
    Depth (mm) 9.8
