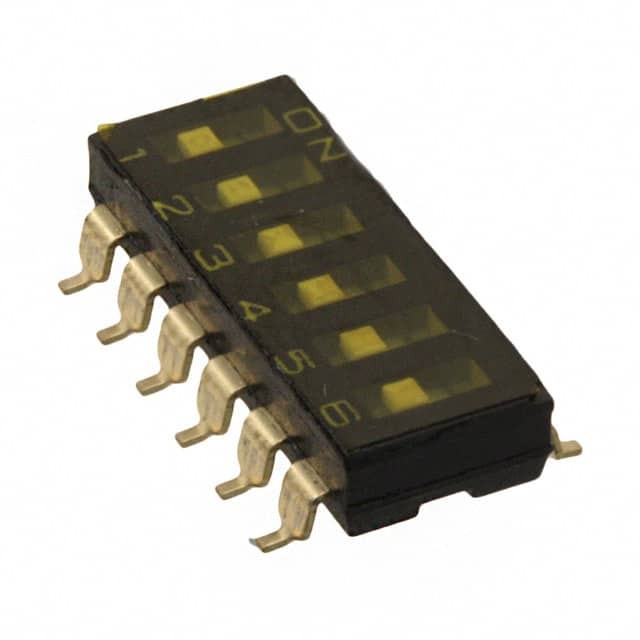

A6S-6102-PH

SKU: 80999

Manufacturer: Omron

Switch DIP OFF ON SPST 6 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 2.54mm SMD T/R

2440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Type	DIP Switch
Actuator Style	Recessed Slide
Pole Throw Configuration	SPST
Switch Configuration	OFF ON
Number of Positions	6
Current Rating-Max(A)	0.025@24VDC
Maximum DC Voltage Rating (V)	24
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	200
Electrical Life (Cycles)	1000
Mechanical Life (Cycles)	1000
Actuator Length (mm)	0
Seal	Tape
Seal Location	Top
Seal Description	Tape
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Terminal Pitch (mm)	2.54
Number of Terminals	12
Total Pitch (mm)	12.7
Row Space (mm)	8.9
Body Orientation	Straight
Operating Temperature-Min	-20
Operating Temperature-Max	70
Packing Method	Tape and Reel
Body Length (mm)	16.18
Body Depth (mm)	6.2
Body Height (mm)	3
Product Weight (g)	0.58
Length (mm)	16.18
Depth (mm)	9.8
