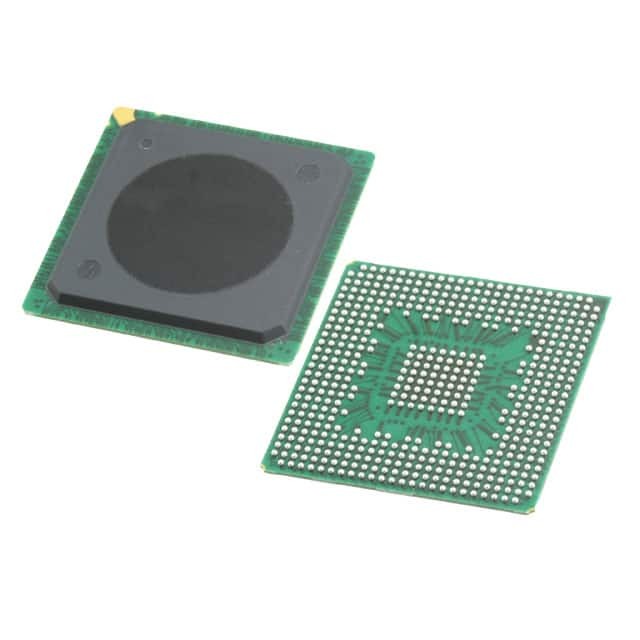

SPC5674FK0MVY3

SKU: 66418

Manufacturer: NXP Semiconductors

MCU 32-bit e200z7 RISC 4MB Flash 1.2V/3.3V/5V Automotive 516-Pin TEBGA Tray

3070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	MPC56xx
Instruction Set Architecture	RISC
Device Core	e200z7
Core Architecture	e200
Maximum CPU Frequency (MHz)	264
Maximum Clock Rate (MHz)	264
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	4MB
RAM Size	256KB
Programmability	Yes
Process Technology	90nm
Interface Type	CAN/SCI/SPI
Number of I/Os	32
No. of Timers	3
Number of ADCs	Quad
ADC Channels	64/64/64/64
ADC Resolution (bit)	12/12/12/12
USART	0
UART	0
USB	0
SPI	4
I2C	0
I2S	0
CAN	4
Ethernet	0
Parallel Master Port	No
Real Time Clock	No
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	1.2
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tray
Original Package	TEBGA
Pin Count	516
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.95(Max)
Package Length	27
Package Width	27
PCB changed	516
