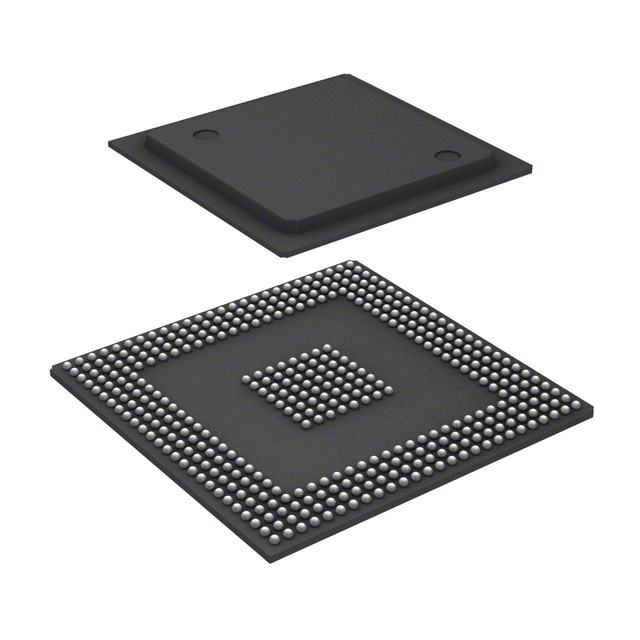

SPC5645SF1VVU

SKU: 31042

Manufacturer: NXP Semiconductors

MCU 32-bit e200z4d RISC 2MB Flash 3.3V/5V Automotive 416-Pin TEBGA Tray

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	MPC56xx
Instruction Set Architecture	RISC
Device Core	e200z4d
Core Architecture	e200
Maximum CPU Frequency (MHz)	125
Maximum Clock Rate (MHz)	125
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	2MB
RAM Size	64KB
Data Memory Size	64KB
Programmability	Yes
Process Technology	90nm
Interface Type	CAN/I2C/SPI
Number of I/Os	177
No. of Timers	2
PWM	1
Number of ADCs	Single
ADC Channels	20
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	3
I2C	4
I2S	0
CAN	3
Ethernet	0
Watchdog	1
Analog Comparators	4
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Packing Method	Tray
Original Package	TEBGA
Pin Count	416
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.95(Max)
Package Length	27
Package Width	27
PCB changed	416
