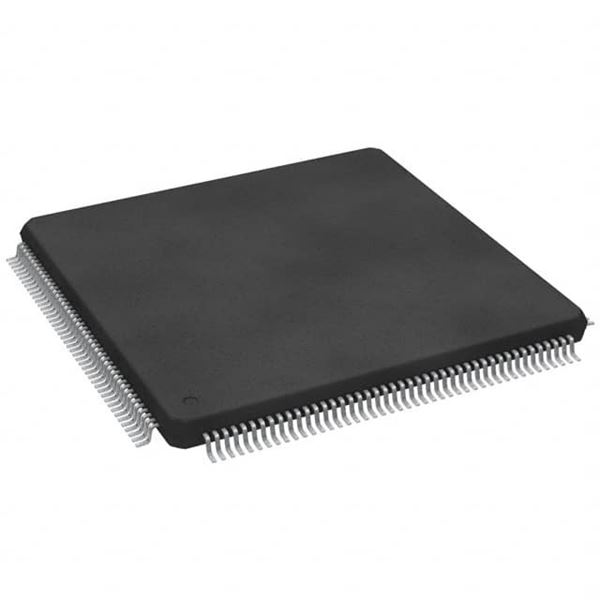

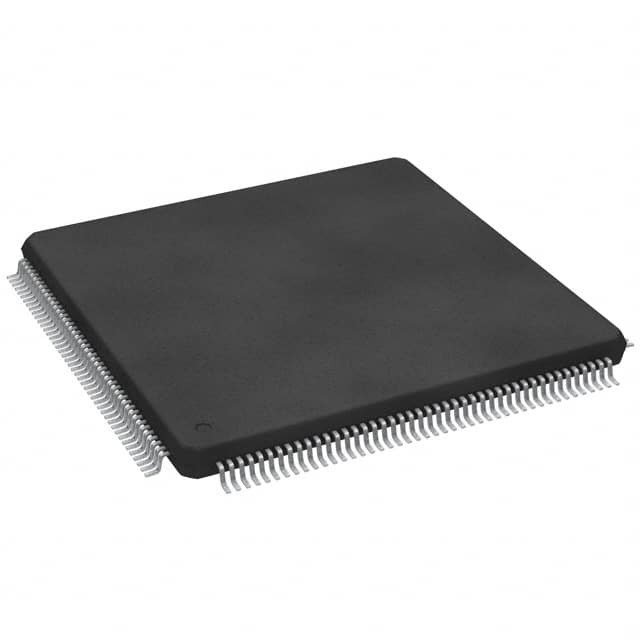

SPC5644BF0MLU8

SKU: 16904

Manufacturer: NXP Semiconductors

MCU 32-bit e200z4d RISC 1.5MB Flash 3.3V/5V Automotive 176-Pin LQFP Tray

2220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	MPC56xx
Instruction Set Architecture	RISC
Device Core	e200z4d
Core Architecture	e200
Maximum CPU Frequency (MHz)	120
Maximum Clock Rate (MHz)	120
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1.5MB
RAM Size	128KB
Data Memory Size	64KB
Programmability	Yes
Process Technology	90nm
Interface Type	CAN/I2C/SCI/SPI
Number of I/Os	147
No. of Timers	10
Number of ADCs	Dual
ADC Channels	27/5
ADC Resolution (bit)	10/12
USART	0
UART	0
USB	0
SPI	8
I2C	1
I2S	0
CAN	6
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tray
Original Package	LQFP
Pin Count	176
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	24
Package Width	24
PCB changed	176
