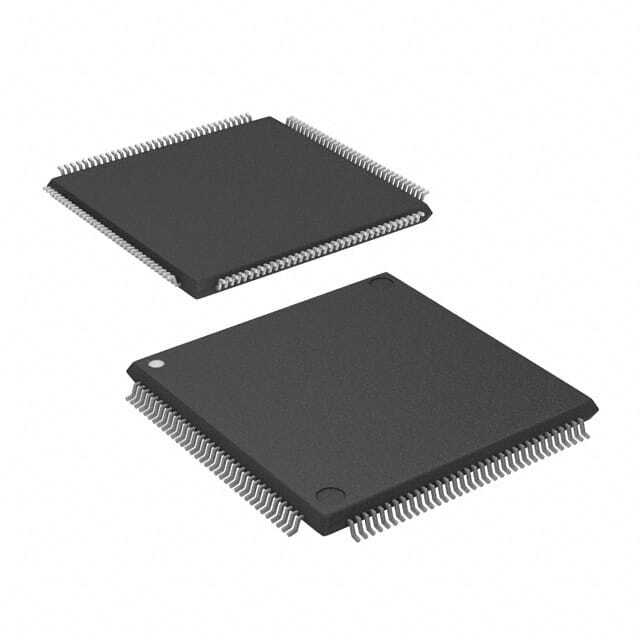

SPC5643LK0MLQ1

SKU: 137194

Manufacturer: NXP Semiconductors

MCU 32-bit e200z4 RISC 1MB Flash 3.3V/5V Automotive 144-Pin LQFP Tray

1930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	MPC56xx
Instruction Set Architecture	RISC
Device Core	e200z4
Core Architecture	e200
Maximum CPU Frequency (MHz)	120
Maximum Clock Rate (MHz)	120
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1MB
RAM Size	128KB
Programmability	Yes
Interface Type	CAN/SCI/SPI/UART
Number of I/Os	16
No. of Timers	5
PWM	2
Number of ADCs	Dual
ADC Channels	16/16
ADC Resolution (bit)	12/12
USART	0
UART	2
USB	0
SPI	3
I2C	0
I2S	0
CAN	2
Ethernet	0
Watchdog	1
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	1500
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Original Package	LQFP
Pin Count	144
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	20
Package Width	20
PCB changed	144
