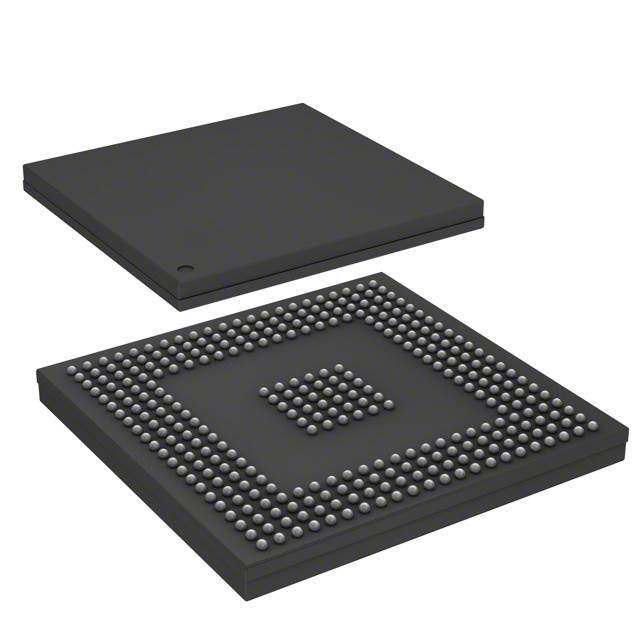

SPC5643AF0MVZ2

SKU: 108709

Manufacturer: NXP Semiconductors

MCU 32-bit e200z4 RISC 3MB Flash 1.2V/3.3V/5V Automotive 324-Pin PBGA Tray

3390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	MPC56xx
Instruction Set Architecture	RISC
Device Core	e200z4
Core Architecture	e200
Maximum CPU Frequency (MHz)	120
Maximum Clock Rate (MHz)	120
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	3MB
RAM Size	192KB
Data Memory Size	64KB
Programmability	Yes
Interface Type	CAN/SCI/SPI
Number of I/Os	151
No. of Timers	2
PWM	8
Number of ADCs	Dual
ADC Channels	40/40
ADC Resolution (bit)	12/12
USART	0
UART	0
USB	0
SPI	2
I2C	0
I2S	0
CAN	3
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	1.2
Operating Supply Voltage-Max (V)	1.32
Maximum Power Dissipation (mW)	1500
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tray
Original Package	PBGA
Pin Count	324
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.95(Max)
Package Length	23
Package Width	23
PCB changed	324
