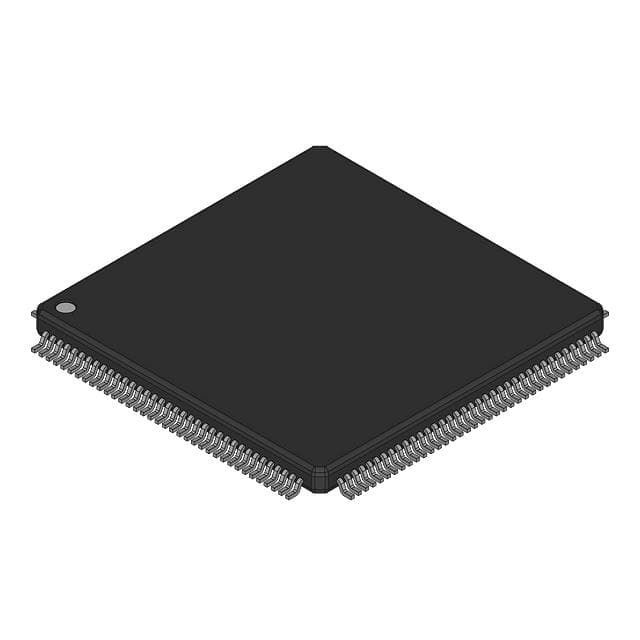

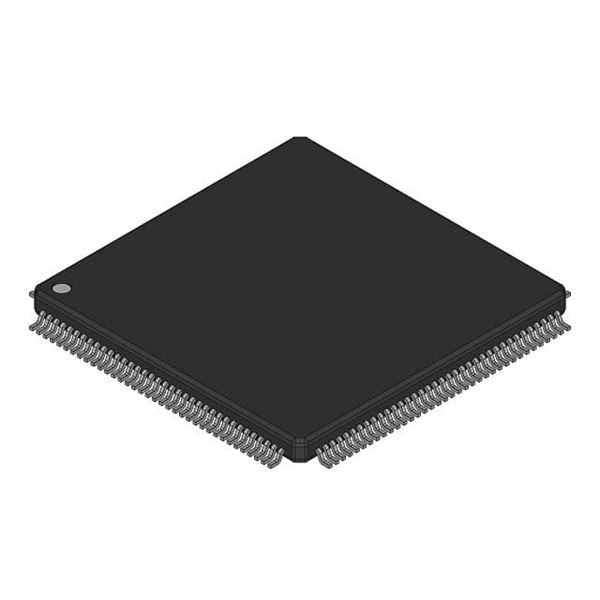

SPC5634MF1MLQ80

SKU: 120852

Manufacturer: NXP Semiconductors

MCU 32-bit e200z3 RISC 1.5MB Flash 5V Automotive 144-Pin LQFP Tray

1520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	MPC56xx
Instruction Set Architecture	RISC
Device Core	e200z335
Core Architecture	e200
Maximum CPU Frequency (MHz)	80
Maximum Clock Rate (MHz)	80
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1.5MB
RAM Size	94KB
Programmability	Yes
Interface Type	CAN/SCI/SPI
Number of I/Os	80
No. of Timers	4
PWM	1
Number of ADCs	Dual
ADC Channels	32/32
ADC Resolution (bit)	12/12
USART	0
UART	0
USB	0
SPI	2
I2C	0
I2S	0
CAN	2
Ethernet	0
Watchdog	1
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Power Dissipation (mW)	400
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tray
Pin Count	144
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	20
Package Width	20
PCB changed	144
