S9S12XS256J0VAE

SKU: 106079

Manufacturer: NXP Semiconductors

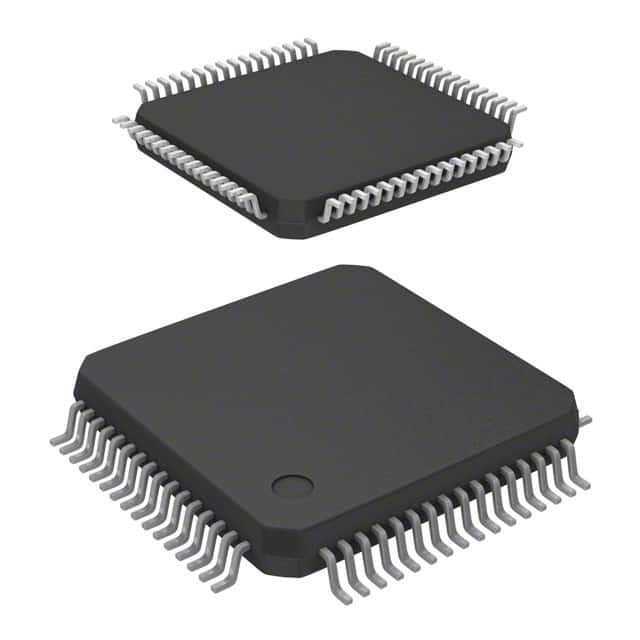

MCU 16-bit HCS12X CISC 256KB Flash 5V Automotive 64-Pin LQFP Tray

2480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	S12X
Instruction Set Architecture	CISC
Device Core	HCS12X
Core Architecture	S12
Maximum CPU Frequency (MHz)	40
Maximum Clock Rate (MHz)	40
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	12KB
Data Memory Size	8KB
Programmability	Yes
Interface Type	CAN/SCI/SPI
Number of I/Os	44
No. of Timers	12
PWM	8
Number of ADCs	Single
ADC Channels	8/8
ADC Resolution (bit)	12
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	4
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3.13
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Pin Count	64
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	10
Package Width	10
PCB changed	64
