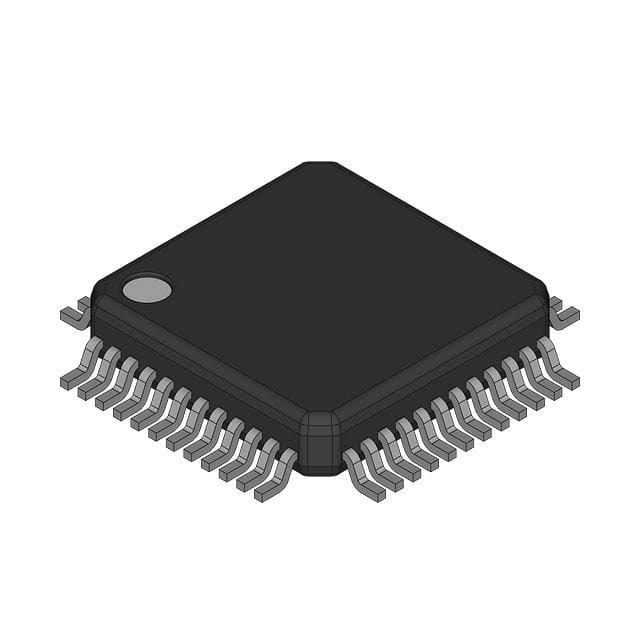

S9S12VR48AF0VLF

SKU: 23815

Manufacturer: NXP Semiconductors

MCU 16-bit HCS12 CISC 48KB Flash 9V/12V/15V Automotive 48-Pin LQFP Tray

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	S12
Instruction Set Architecture	CISC
Device Core	HCS12
Core Architecture	S12
Maximum CPU Frequency (MHz)	25
Maximum Clock Rate (MHz)	25
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	48KB
RAM Size	2KB
Programmability	Yes
Interface Type	SCI/SPI
Number of I/Os	24
No. of Timers	4
PWM	2
Number of ADCs	Single
ADC Channels	6
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	3
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	6
Typical Operating Supply Voltage (V)	9
Operating Supply Voltage-Max (V)	18
Operating Temperature-Min	-40
Operating Temperature-Max	105
Pin Count	48
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	7
Package Width	7
PCB changed	48
