S9S12P96J0MFT

SKU: 155779

Manufacturer: NXP Semiconductors

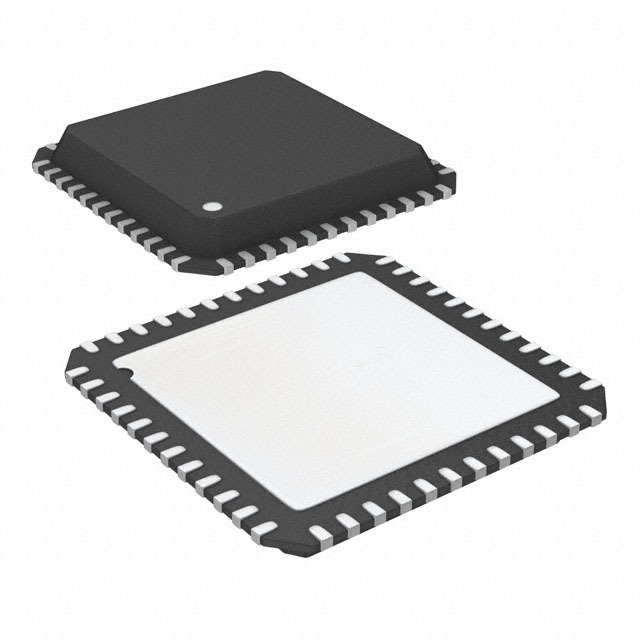

MCU 16-bit HCS12 CISC 96KB Flash 5V Automotive 48-Pin QFN EP Tray

1980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	S12
Instruction Set Architecture	CISC
Device Core	HCS12
Core Architecture	S12
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	96KB
RAM Size	6KB
Data Memory Size	4KB
Maximum Expanded Memory Size	256KB
Programmability	Yes
Interface Type	CAN/SCI/SPI
Number of I/Os	34
No. of Timers	1
PWM	6
Number of ADCs	Single
ADC Channels	10
ADC Resolution (bit)	12
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	3
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3.13
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tray
Pin Count	48
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	7
Package Width	7
PCB changed	48
