S9S12HY64J0VLL

SKU: 66301

Manufacturer: NXP Semiconductors

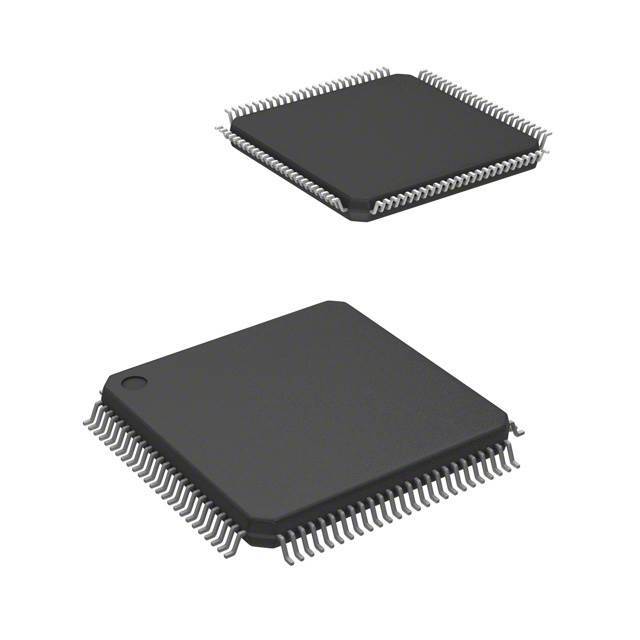

MCU 16-bit HCS12 CISC 64KB Flash 5V Automotive 100-Pin LQFP Tray

2890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	S12
Instruction Set Architecture	CISC
Device Core	HCS12
Core Architecture	S12
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	4KB
Data Memory Size	4KB
Maximum Expanded Memory Size	256KB
Programmability	Yes
Interface Type	CAN/I2C/SCI/SPI
Number of I/Os	80
No. of Timers	2
Timers Resolution (bit)	16/16
PWM	8
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	10
LCD Segments	160
USART	0
UART	0
USB	0
SPI	1
I2C	1
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	3
Parallel Master Port	No
Real Time Clock	No
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	3.13
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Pin Count	100
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	14
Package Width	14
PCB changed	100
