S9S12GN16F1VTJ

SKU: 38046

Manufacturer: NXP Semiconductors

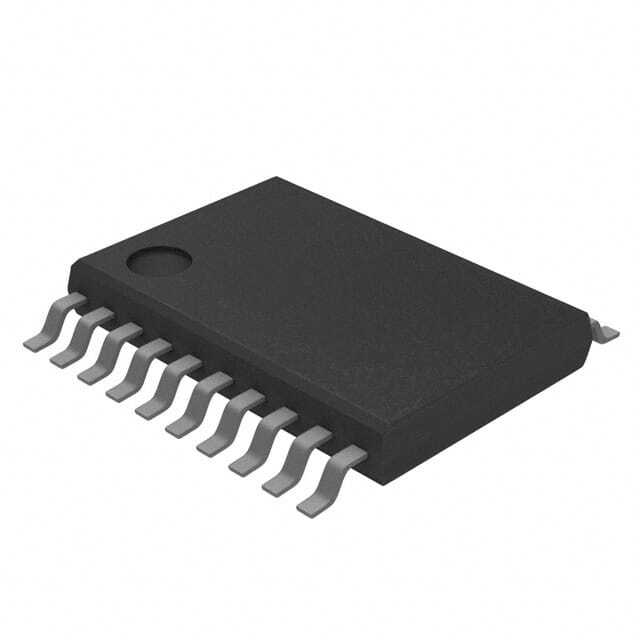

MCU 16-bit HCS12 CISC 16KB Flash 5V Automotive 20-Pin TSSOP Tube

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	S12
Instruction Set Architecture	CISC
Device Core	S12
Core Architecture	S12
Maximum CPU Frequency (MHz)	25
Maximum Clock Rate (MHz)	25
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	16KB
RAM Size	1KB
Maximum Expanded Memory Size	256KB
Programmability	Yes
Interface Type	SCI/SPI
Number of I/Os	14
No. of Timers	1
Timers Resolution (bit)	16
Timers Channels	6
PWM	6
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	10
Number of DACs	Dual
USART	0
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	3.13
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
