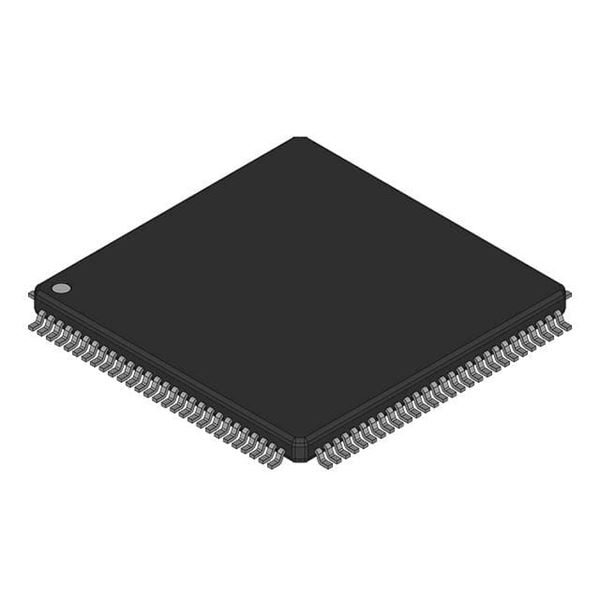

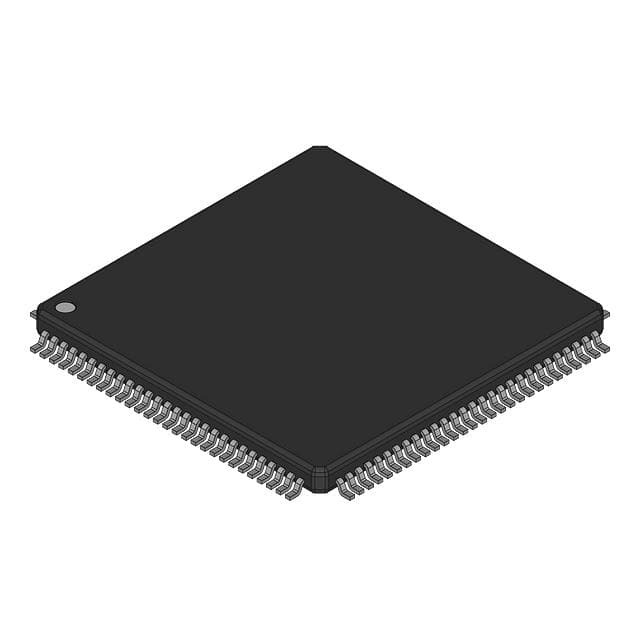

S9S12DG12F1MPVE

SKU: 106076

Manufacturer: NXP Semiconductors

MCU 16-bit HCS12 CISC 128KB Flash 2.5V/5V Automotive 112-Pin LQFP Tray

4690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	NRND
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	S12
Instruction Set Architecture	CISC
Device Core	HCS12
Core Architecture	HCS12
Maximum CPU Frequency (MHz)	25
Maximum Clock Rate (MHz)	25
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	8KB
Interface Type	CAN/I2C/SCI/SPI
Number of I/Os	91
No. of Timers	1
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	1
I2C	1
I2S	0
CAN	1
Ethernet	0
Operating Supply Voltage-Min (V)	2.35
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Pin Count	112
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	20
Package Width	20
PCB changed	112
